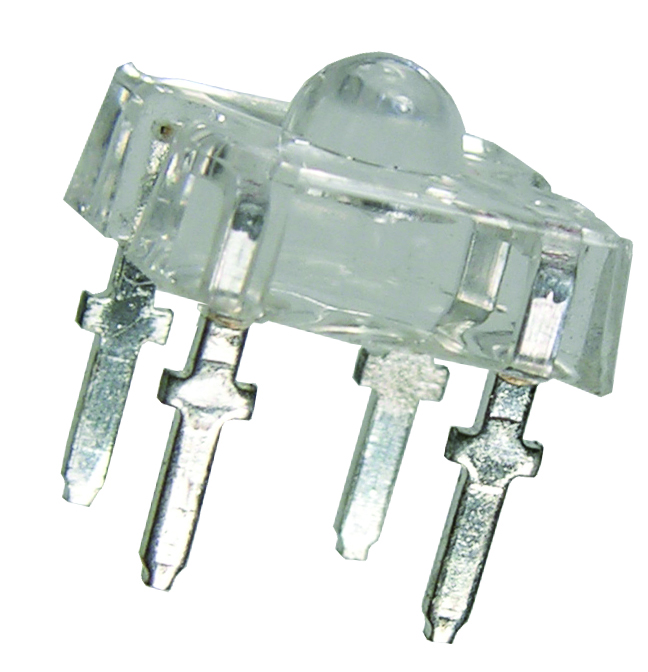

OVFSW6C8
Package Type - Super Flux 4-Pin Visible LEDs
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Packaged in tubes
Compatible with automatic placement equipment
Compatible with infrared and vapor phase reflow solder process
Mono-colors
Specifications
| Applications |
|
|---|---|
| Package | 7.6mm2 |
| Color | White |
| High Reliability | No |
| Screening Level | No |
| Hall Effect | No |
| Photologic | No |
| Photointerrupter Type | No |
| SMD or Thru Hole | Thru Hole |
| Material | InGaN |
| RoHs Compliance | Y |
| Lens Color | Clear |
| IV at IF=mA/Typ (Brightness) | 30 / 7,000mlm |
|---|---|
| VF (Typ) | 3.6V |
| Viewing Angle | 60° |
| Wavelength / Color Temperature | 5000°K to 10000°K |
Resources & Technical Documents
- All (17)
- End Of Life (0)
- Product Change Notification (0)
- Case Study (0)
- Technical Bulletin (0)
- Policy & Regulations (0)
- Terms & Conditions (0)
- White Paper (0)
- 3D Model (0)
- Datasheet (1)
- Brochure (4)
- Application Note (1)
- Compliance (11)
| Datasheet | OVFSxxC8 | |
| Brochure | Optoelectronics One Pager | |
| Brochure | Sensors Product Selection Guide | |
| Brochure | Custom Optoelectronic Assemblies Tri-Fold | |
| Brochure | Optoelectronics for Medical Tri-Fold | |
| Application Note | App Note 228: Thermal Management of Visible LEDs | |
| Compliance | RoHs Letter for Juarez Site | |
| Compliance | Declaration of Mineral Conflict Free Material for Juarez Site | |
| Compliance | Lead Free and RoHs Compliance for Juarez Site | |
| Compliance | REACH Compliance for Juarez Site | |
| Compliance | Conflict Minerals Policy for Juarez Site | |
| Compliance | CMRT for Juarez Site | |
| Compliance | Juarez ISO 9001 | |
| Compliance | IATF16949 for Juarez Site | |
| Compliance | Supplier Quality Requirements Manual | |
| Compliance | Quality Manual for Juarez Site | |
| Compliance | RoHs 3 Declaration Form for Juarez Site |
