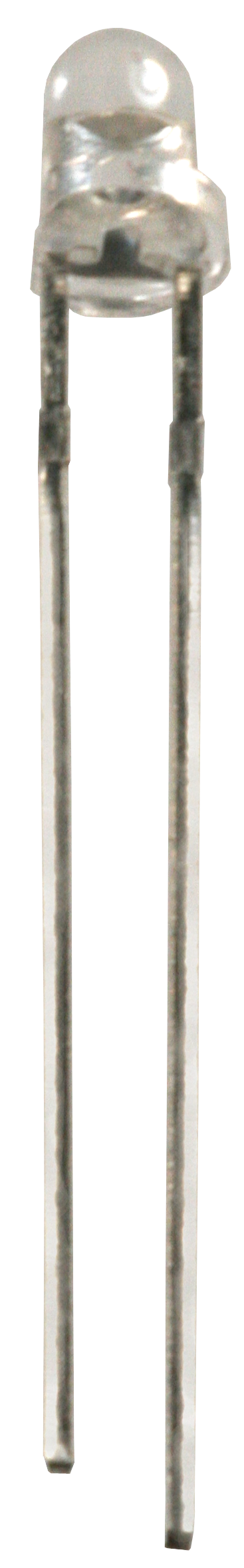

OVLAW4CB7
Visible LED - 3mm Round Visible LEDs
Lifecycle:
Active (Mature)
Brand:
Optek Technology
High luminous intensity
Through-hole type
Clear lens
High efficiency
Specifications
| Applications |
|
|---|---|
| Package | 3mm Round |
| Color | White |
| High Reliability | No |
| Screening Level | No |
| Hall Effect | No |
| Photologic | No |
| Photointerrupter Type | No |
| SMD or Thru Hole | Thru Hole |
| Material | InGaN |
| RoHs Compliance | Y |
| Lens Color | Clear |
| IV at IF=mA/Typ (Brightness) | 20 / 6,200mcd |
|---|---|
| VF (Typ) | 3.2V |
| Viewing Angle | 40° |
| Wavelength / Color Temperature | 6250°K to 8900°K |
