OVLBR4C7

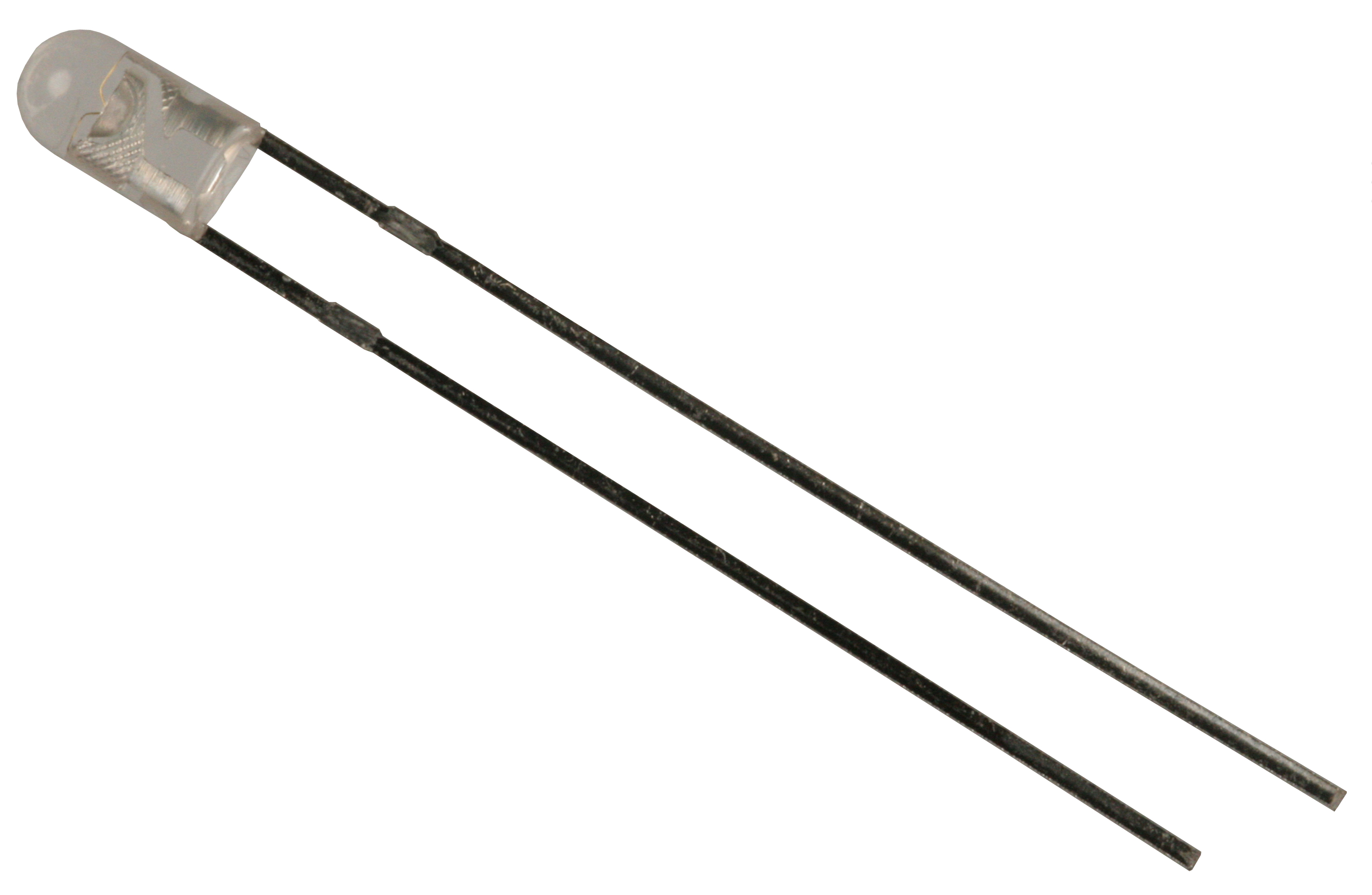

Visible LED - 3mm Round Visible LEDs

Lifecycle:

Active (Mature)

Brand:

Optek Technology

Distributor Inventory
Data Sheet
checkmark

High brightness with well-defined spatial radiation patterns

checkmark

UV-resistant epoxy lens

checkmark

Lead-frame material is iron alloy with tin plated leads

checkmark

No stand-offs

Specifications

Applications
  • Pedestrian signals
  • Signage and architectural lighting
  • Backlighting
  • Automotive
  • Outdoor/indoor displays
Package 3mm Round
Color Red
High Reliability No
Screening Level No
Hall Effect No
Photologic No
Photointerrupter Type No
SMD or Thru Hole Thru Hole
Material AlInGaP
RoHs Compliance Y
Lens Color Clear
IV at IF=mA/Typ (Brightness) 20 / 3,700mcd
VF (Typ) 2V
Viewing Angle 45°
Wavelength / Color Temperature 623nm
