OVLLR8C7

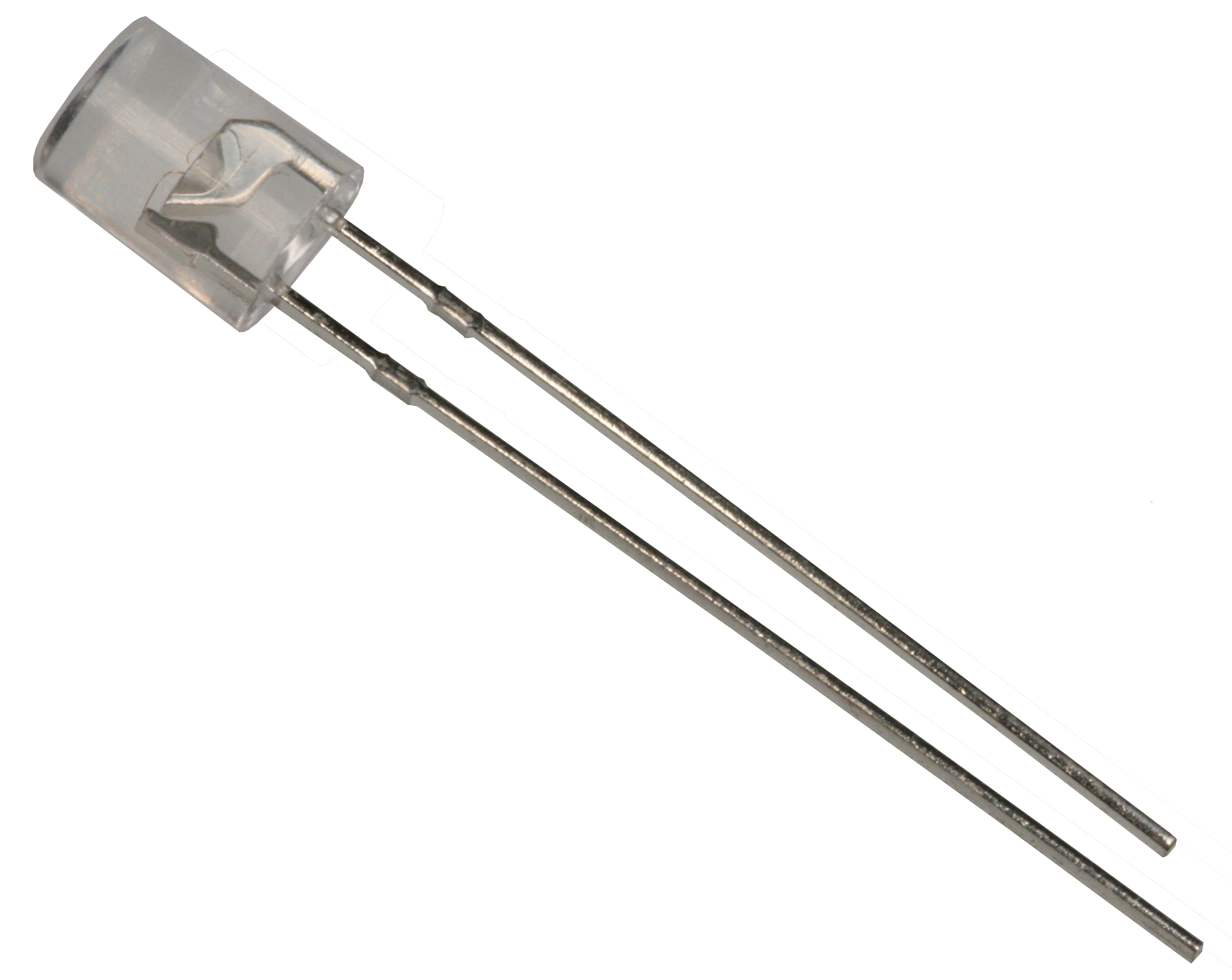

Visible LED - 5mm Cylindrical Visible LEDs
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Wide viewing angle
High-brightness indicator
Industry standard lead spacing
Unique lens shape for flexible applications
Specifications
| Applications |
|
|---|---|
| Package | 5mm Cylinder |
| Color | Red |
| High Reliability | No |
| Screening Level | No |
| Hall Effect | No |
| Photologic | No |
| Photointerrupter Type | No |
| SMD or Thru Hole | Thru Hole |
| Material | AlInGaP |
| RoHs Compliance | Y |
| Lens Color | Clear |
| IV at IF=mA/Typ (Brightness) | 20 / 900mcd |
|---|---|
| VF (Typ) | 2V |
| Viewing Angle | 100° |
| Wavelength / Color Temperature | 623nm |
