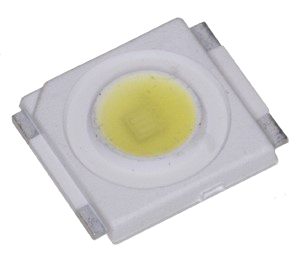

OVS5WBCR4A
0.5-watt white LED, 3.7 x 3.7mm, 120°, AEC-Q101
Lifecycle:
Active (Growth)
Brand:
Optek Technology
Robust energy-efficient design with long operating life
Low thermal resistance
High luminous intensity
Optional optics to suit application
Specifications
| Applications |
|
|---|---|
| Package | 0.5-Watt SMD 3.7mm x 3.5mm |
| Color | White |
| High Reliability | No |
| Screening Level | No |
| Hall Effect | No |
| Photologic | No |
| Photointerrupter Type | No |
| SMD or Thru Hole | Surface Mount |
| Material | InGaN |
| RoHs Compliance | Y |
| Lens Color | - |
| IV at IF=mA/Typ (Brightness) | 200 / 45lm |
|---|---|
| VF (Typ) | 2.9 ~ 3.45V |
| Viewing Angle | 120° |
| Wavelength / Color Temperature | Obsolete |
