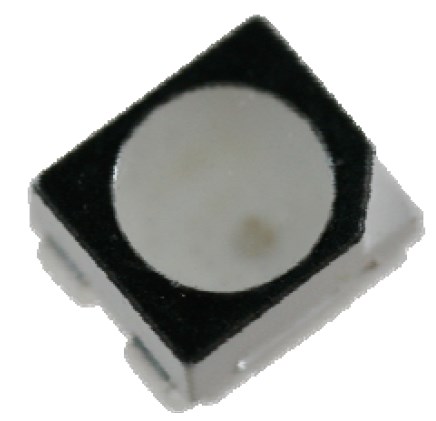

OVSARGB4R8
Package Type - PLCC Visible LEDs
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Full-color red/green/blue
PLCC package with 6 pins
Wide viewing angle
High performance
Tuneable color mix
Specifications
| Applications |
|
|---|---|
| Package | PLCC4 |
| Color |
|
| High Reliability | No |
| Screening Level | No |
| Hall Effect | no |
| Photologic | No |
| Photointerrupter Type | No |
| SMD or Thru Hole | Surface Mount |
| Material | AllnGaP, InGaN, InGaN |
| RoHs Compliance | Y |
| Lens Color | Diffused |
| IV at IF=mA/Typ (Brightness) | 635mcd, 1000mcd, 335mcd |
|---|---|
| VF (Typ) | R: 2.3 G: 3.6 B: 3.6V |
| Viewing Angle | 120° |
| Wavelength / Color Temperature | R: 622nm, 530nm, 470nm |
