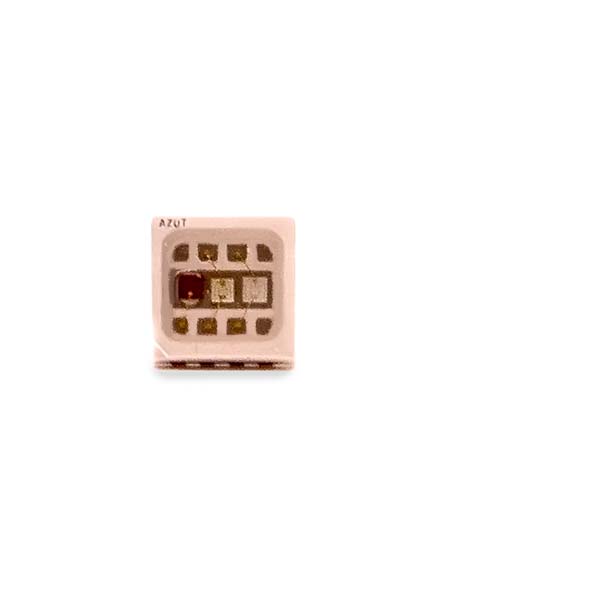

OVSPRGBCR4A
EOL-1 - Watt 3X3mm SMD Flat Lens 120° – Red, Green, Blue, AEC-Q101
Lifecycle:
Active (Growth)
Brand:
Optek Technology
Surface mount Red, Green, Blue designed for high current drive
Thermal resistance junction/solder point (3 LEDs on) - 50K/W
Ultra low profile of 1.5mm
High flex output
Specifications
| Applications |
|
|---|---|
| Package | - |
| Color | - |
| High Reliability | No |
| Screening Level | No |
| Hall Effect | No |
| Photologic | No |
| Photointerrupter Type | No |
| SMD or Thru Hole | Surface Mount |
| Material | - |
| RoHs Compliance | Y |
| Lens Color | - |
| IV at IF=mA/Typ (Brightness) | - |
|---|---|
| VF (Typ) | - |
| Viewing Angle | - |
| Wavelength / Color Temperature | R: 625nm G: 525nm B: 460nm |
