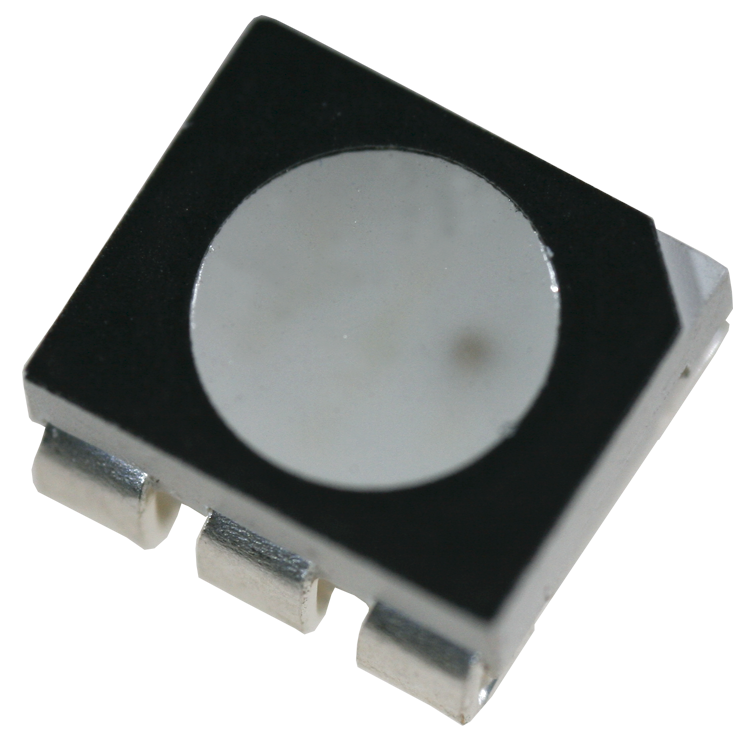

OVSTRGBB1CR8
Package Type - PLCC6 Visible LEDs
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Full-color red/green/blue
PLCC package with 6 pins
Wide viewing angle
High performance
Tuneable color mix
Specifications
| Applications |
|
|---|---|
| Package | PLCC6 |
| Color |
|
| High Reliability | No |
| Screening Level | No |
| Hall Effect | No |
| Photologic | No |
| Photointerrupter Type | No |
| SMD or Thru Hole | Surface Mount |
| Material | AlInGaP, InGaN, InGaN |
| RoHs Compliance | Y |
| Lens Color | Diffused |
| IV at IF=mA/Typ (Brightness) | 50 / 700mcd 50 / 1600mcd 50 / 400mcd |
|---|---|
| VF (Typ) | R: 2.5 G: 4.5 B: 4.5V |
| Viewing Angle | 120° |
| Wavelength / Color Temperature | 624nm, 525nm, 470nm |
