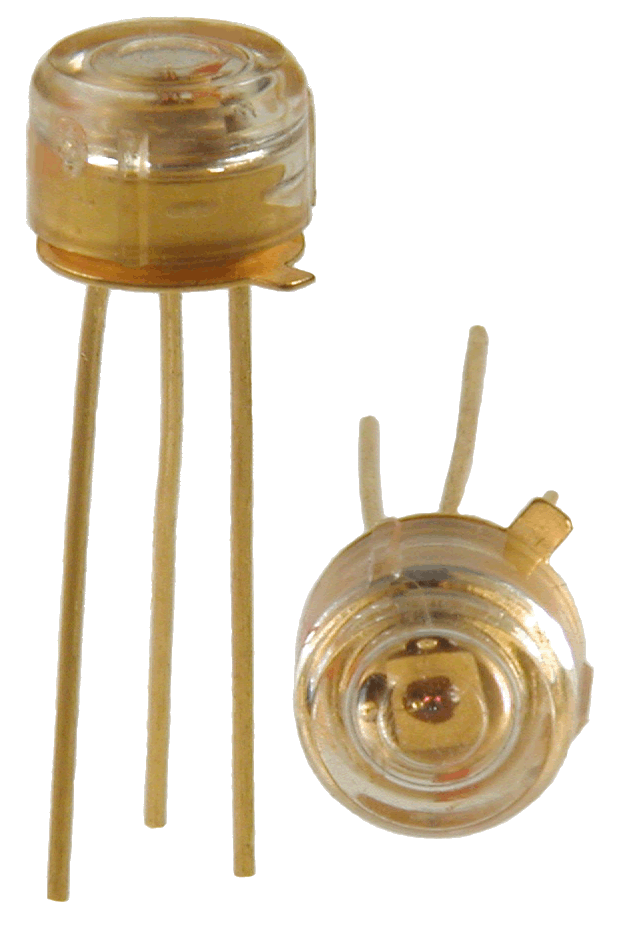

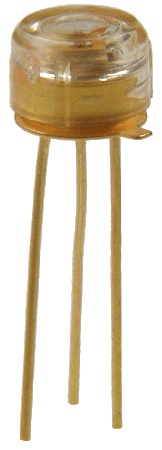

OPF370A
Fiber Optic Transmitter
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Low cost 850nm LED technology
Electrically isolated plastic cap package
High thermal stability
High optical coupling efficiency to multimode fiber
Industrial temperature range
Specifications
| Applications |
|
|---|---|
| Package | TO-18 Clear Cap |
| Receiver Output Type | - |
| Receiver or Transmitter | Transmitter |
| High Reliability | No |
| Hall Effect | No |
| Photologic | No |
| Lead Length Min | 0.5" |
| Lead Length Max | 0.5" |
| Responsivity Min/Max/Typ | - |
| Fiber Size | 50 / 125 to 200 / 300µm |
| RoHs Compliance | Y |
| Laser Class | - |
| Wavelength | 850nm |
|---|---|
| Supply Voltage | - |
| IF (mA) Max | 100mA |
| Operating Temperature | -40°C ~ 100°C |
| Data Rate Max | - |
| Input Sensitivity | - |
| Peak Input Power | - |
| Rise Time Typ | 8ns |
| Reverse Voltage | - |
| Output Type | LED - Light output |
| VCE Max | - |
| VCC Max Range | - |
| ICCL/ICCH | - |
| Alternative Part Number | - |
|---|
