627B

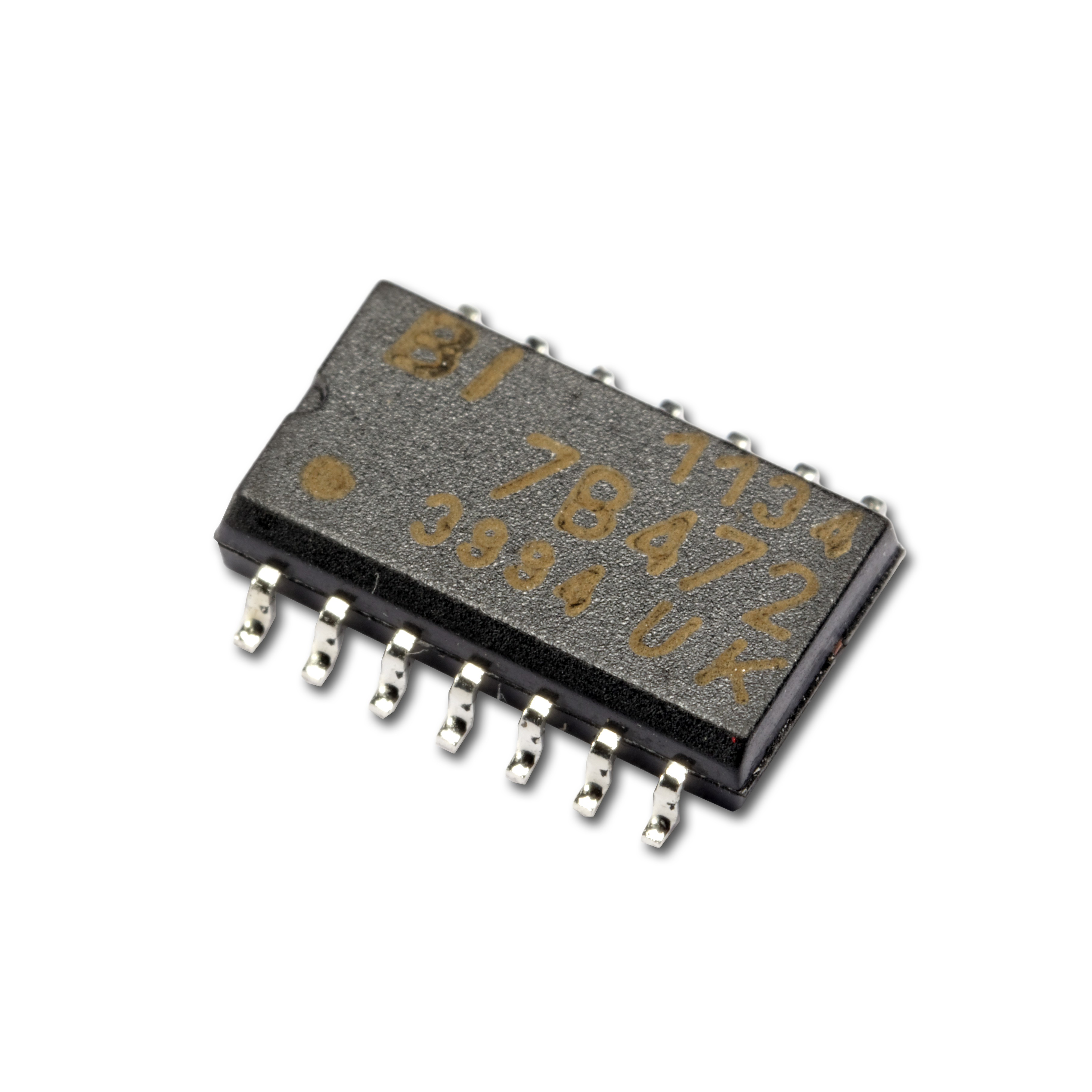

OBSOLETE SMD SOIC network resistor, 14 pin bussed

Brand:

BI Technologies

Series:

627

Lifecycle:

Obsolete

Specifications

Series 627
Application Network / array
Mounting SMD - solder
Package SOIC
Technology Thick film
Approval None
Example MPN 627B331FTR4
Termination Options Pb-free
Product Brand BI Technologies
Power 0.16W
Rated Ambient Temperature 70°C
De-rate to 0W Ambient Temperature 150°C
Max Ambient Temperature 125°C
LEV 50V
Resistance min 10Ω
Resistance max 1MΩ
Critical Resistance (where applying LEV dissipates Pr) 15.625kΩ
Tolerance 1%
TCR 50ppm/°C
Isolation Voltage of Insulation Unspecified: ?V
RoHS Compliant (if Pb-free) -
RoHS Exemption -
China RoHS (if Pb-free) -
REACH Status (if Pb-free) -
CMRT Conflict Mineral Status -
EMRT Extended Mineral Status -
Termination Finish (if Pb-free) e2 - SnAg (96S)
Termination Finish (if Pb-bearing) Not available
How to Specify Pb-Free All part numbers are Pb-free
ECCN -
Packing Plastic tape & reel
Quantity 2000
Nett Weight Each -
Reflow Process J-STD-020D
MSL 1
Wave Process Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time
Shelf-life None defined, but solderability test prior to use is recommended after two years from date of manufacture
Lifecycle Obsolete
EOL Date / YTEOL Estimate EOL in Apr 2016
Latest PCN Date 14 Apr 16
Alternative Product No alternative
