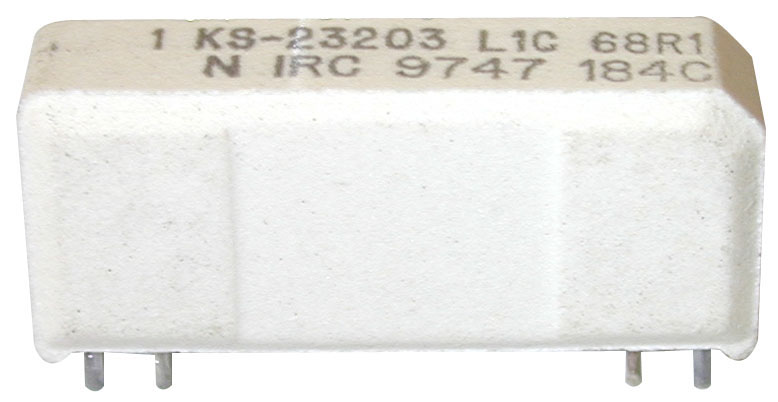

ALFR2B

OBSOLETE Telecommunications line feed resistor

Brand:

IRC

Series:

ALFR

Lifecycle:

Obsolete

Specifications

Series ALFR
Application Fusible
Mounting Through hole
Package Radial
Technology Wirewound
Approval None
Example MPN ALFR2B1000F
Termination Options -
Product Brand IRC
Power 2W
Rated Ambient Temperature 0°C
De-rate to 0W Ambient Temperature 0°C
Max Ambient Temperature 0°C
LEV 0V
Resistance min 4.8Ω
Resistance max 1.6kΩ
Critical Resistance (where applying LEV dissipates Pr) -
Tolerance 1%
TCR 50ppm/°C
Isolation Voltage of Insulation Unspecified: ?V
RoHS Compliant (if Pb-free) -
RoHS Exemption -
China RoHS (if Pb-free) -
REACH Status (if Pb-free) -
CMRT Conflict Mineral Status -
EMRT Extended Mineral Status -
Termination Finish (if Pb-free) None
Termination Finish (if Pb-bearing) 60/40
How to Specify Pb-Free -
ECCN -
Packing Tube
Quantity 20
Nett Weight Each -
Reflow Process Not applicable
MSL Not applicable
Wave Process -
Shelf-life -
Lifecycle Obsolete
EOL Date / YTEOL Estimate EOL in 2014
Latest PCN Date 01 Oct 14
Alternative Product No alternative
