Lifecycle:
Obsolete
Brand:
BI Technologies
Series:
BB2110
| Series | BB2110 |
|---|---|
| Application | Network / array |
| Mounting | SMD - solder |

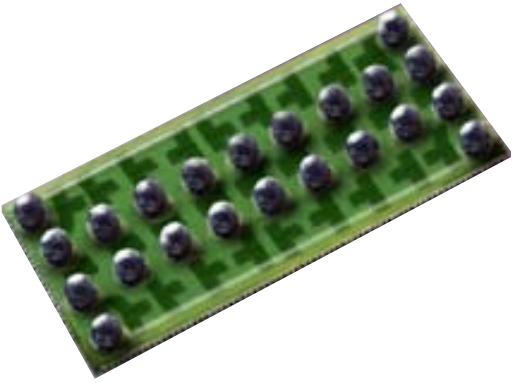

| Package | BGA |
| Technology | Thick film |
| Approval | None |
| Example MPN | BB2110DI |
| Termination Options | - |
| Power | 0.056W |
|---|---|
| Rated Ambient Temperature | 70°C |
| De-rate to 0W Ambient Temperature | 125°C |
| Max Ambient Temperature | 125°C |
| LEV | 0V |
| Resistance min | 22Ω |
| Resistance max | 47Ω |
| Critical Resistance (where applying LEV dissipates Pr) | - |
| Tolerance | 0.01% |
| TCR | 200ppm/°C |
| Isolation Voltage of Insulation | Unspecified: ?V |
| RoHS Compliant (if Pb-free) | - |
|---|---|
| RoHS Exemption | - |
| China RoHS (if Pb-free) | - |
| REACH Status (if Pb-free) | - |
| CMRT Conflict Mineral Status | - |
| EMRT Extended Mineral Status | - |
| Termination Finish (if Pb-free) | e1 - SnAgCu |
| Termination Finish (if Pb-bearing) | SnPbAg (10/88/2) |
| How to Specify Pb-Free | Part number has LF after Type |
| ECCN | - |
| Packing | Plastic tape & reel |
|---|---|
| Quantity | 1000 |
| Nett Weight Each | - |
| Reflow Process | Compatible, but no standard defined |
| MSL | 1 |
| Wave Process | Not applicable |
| Shelf-life | None defined |
| Launch Date | Pre-2000 |
|---|---|
| Lifecycle | Obsolete |
| EOL Date / YTEOL Estimate | EOL date not recorded |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
| Datasheet | BB1110,2110 | |
| Application Note | TN001 Advice on Storage Conditions for Fixed Resistors | |
| Application Note | TN003 Methods for Coding Resistor Values in Part Numbers | |
| Application Note | TN005 EIA Standard Values for Resistors | |
| Application Note | TN007 Instant Access to Life Cycle and Obsolete Product Data Online |
