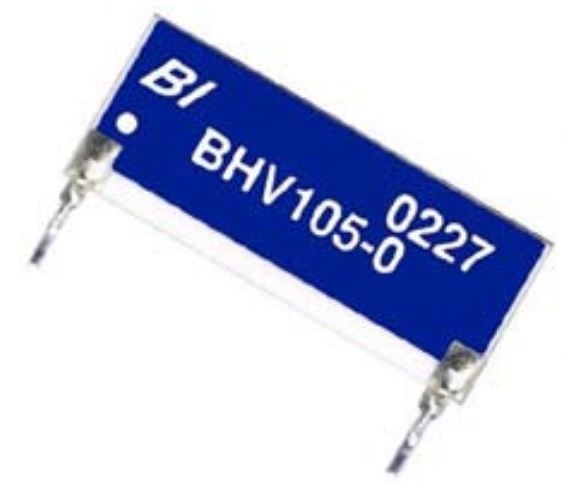

BHV30

OBSOLETE High voltage planar resistor

Brand:

BI Technologies

Series:

BHV

Lifecycle:

Obsolete

Specifications

Series BHV
Application High value / voltage
Mounting Through hole
Package Radial
Technology Thick film
Approval None
Example MPN BHV30RS106J
Termination Options Pb-free
Product Brand BI Technologies
Power 3W
Rated Ambient Temperature 70°C
De-rate to 0W Ambient Temperature 125°C
Max Ambient Temperature 125°C
LEV 30kV
Resistance min 1MΩ
Resistance max 1GΩ
Critical Resistance (where applying LEV dissipates Pr) 300MΩ
Tolerance 1%
TCR 150ppm/°C
Isolation Voltage of Insulation 5kV
RoHS Compliant (if Pb-free) -
RoHS Exemption -
China RoHS (if Pb-free) -
REACH Status (if Pb-free) -
CMRT Conflict Mineral Status -
EMRT Extended Mineral Status -
Termination Finish (if Pb-free) e3 - Sn matt plated
Termination Finish (if Pb-bearing) Not available
How to Specify Pb-Free All standard part numbers are Pb-free
ECCN -
Packing Tray
Quantity 100
Nett Weight Each -
Reflow Process Not applicable
MSL Not applicable
Wave Process Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time
Shelf-life None defined, but solderability test prior to use is recommended after two years from date of manufacture
Lifecycle Obsolete
EOL Date / YTEOL Estimate EOL in 2014
Latest PCN Date No PCNs
Alternative Product HVP / HVD
