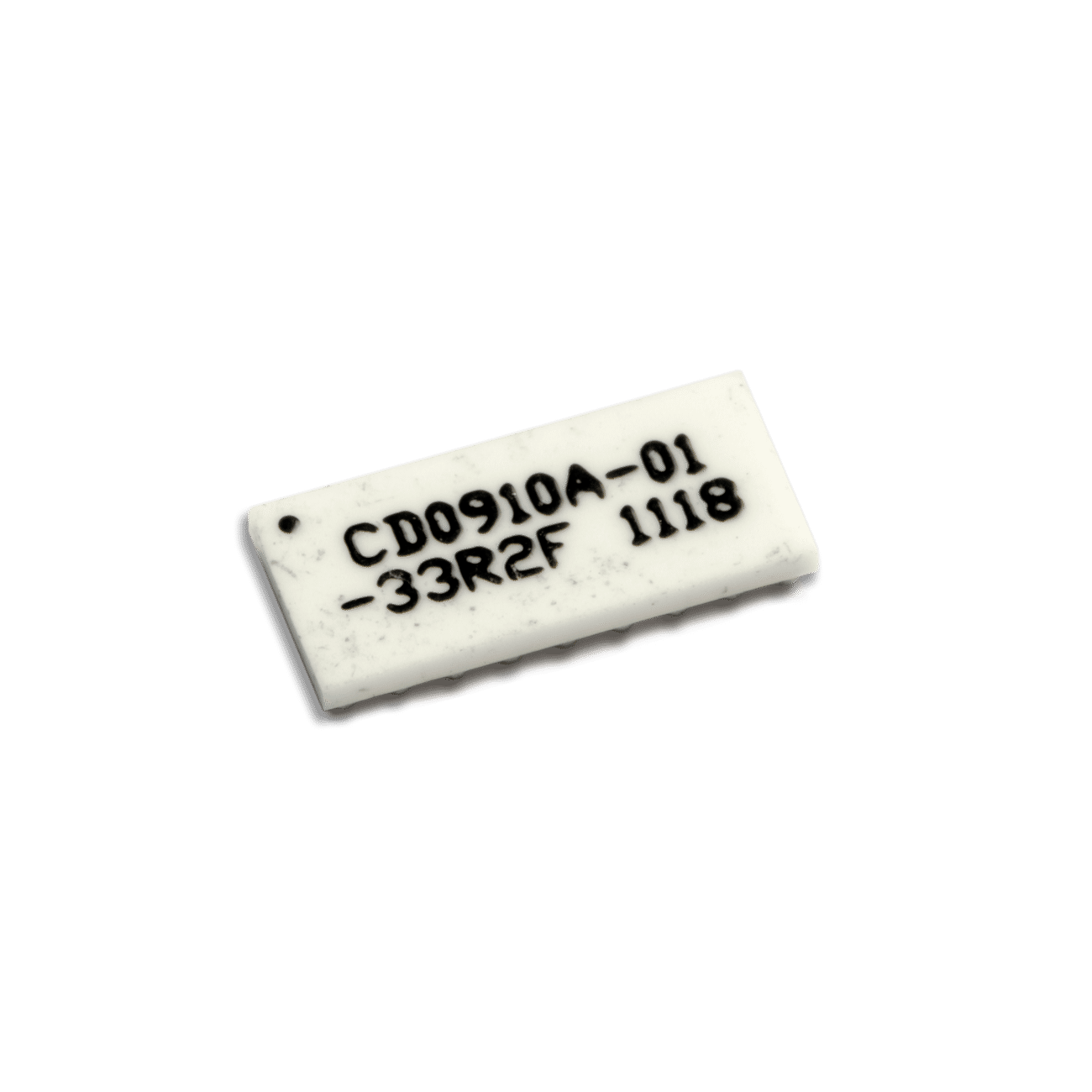

Lifecycle:
Active (Mature)
Brand:
IRC
Series:
CHC Precision
| Series | CHC Precision |
|---|---|
| Application | Network / array Precision |
| Mounting | SMD - solder |
| Package | BGA |
| Technology | TaN film |
| Approval | None |
| Example MPN | CHC-CH8ALF-03-1002-BB |
| Termination Options |
|
| Power | 0.1W |
|---|---|
| Rated Ambient Temperature | 70°C |
| De-rate to 0W Ambient Temperature | 150°C |
| Max Ambient Temperature | 150°C |
| LEV | 50V |
| Resistance min | 10Ω |
| Resistance max | 100kΩ |
| Critical Resistance (where applying LEV dissipates Pr) | 25kΩ |
| Best Tolerance | 0.05% |
| Best TCR | 5ppm/°C |
| Isolation Voltage of Insulation | Unspecified: ?V |
| RoHS Compliant (if Pb-free) | Yes (see below) |
|---|---|
| RoHS Exemption | None |
| China RoHS (if Pb-free) | Compliant |
| REACH Status (if Pb-free) | See REACH statement pdf (below) |
| CMRT Conflict Mineral Status | See CMRT Excel file (below) |
| EMRT Extended Mineral Status | See EMRT Excel file (below) |
| Termination Finish (if Pb-free) | e1 - SnAgCu |
| Termination Finish (if Pb-bearing) | 90/10 |
| How to Specify Pb-Free | Part number has LF after Type |
| ECCN | EAR99 |
| Packing | Tube |
|---|---|
| Quantity | - |
| Nett Weight Each | - |
| Reflow Process | Compatible, but no standard defined |
| MSL | 1 |
| Wave Process | Not applicable |
| Shelf-life | None defined |
| Launch Date | 2003 |
|---|---|
| Lifecycle | Active (Mature) |
| EOL Date / YTEOL Estimate | 5 years or more. (Reviewed May 24) |
| Latest PCN Date | 15 Jul 20 |
| Alternative Part Number | - |
| Datasheet | CHC Precision | |
| Application Note | BGA Resistive Network Capability | |
| Application Note | TN001 Advice on Storage Conditions for Fixed Resistors | |
| Application Note | TN002 Instant Access to RoHS REACH Conflict Mineral and other Compliance Data Online | |
| Application Note | TN003 Methods for Coding Resistor Values in Part Numbers | |
| Application Note | TN005 EIA Standard Values for Resistors | |
| Application Note | TN007 Instant Access to Life Cycle and Obsolete Product Data Online | |
| Application Note | TN009 Parametric and Category Searching for Resistors | |
| Brochure | SnPb Terminations Portfolio | |
| Compliance | Dallas ISO 9001 | |
| Compliance | Dallas ISO 14001 2015 | |
| Compliance | RoHS CHC | |
| Compliance | REACH Statement Dallas | |
| Compliance | CMRT Conflict Mineral Dallas | |
| Compliance | EMRT Extended Mineral Dallas | |
| Compliance | Proposition 65 Declaration Dallas | |
| Compliance | TSCA Statement Dallas | |
| Compliance | PFAS | |
| Compliance | POPs | |
| Compliance | Tin Whisker Report | |
| Product Change Notification | PCNs for CHC |
