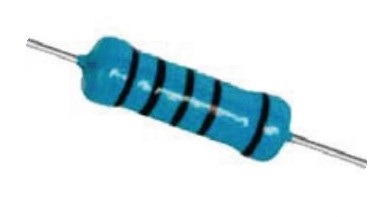

| Series | CMF |
|---|---|
| Application | General purpose |
| Mounting | Through hole |
| Package | Axial |
| Technology | Metal film |
| Approval | None |
| Example MPN | CMF11001FLF |
| Termination Options | Pb-free |
| Power | 1W |
|---|---|
| Rated Ambient Temperature | 70°C |
| De-rate to 0W Ambient Temperature | 155°C |
| Max Ambient Temperature | 155°C |
| LEV | 500V |
| Resistance min | 10Ω |
| Resistance max | 1MΩ |
| Critical Resistance (where applying LEV dissipates Pr) | 250kΩ |
| Best Tolerance | 1% |
| Best TCR | 100ppm/°C |
| Isolation Voltage of Insulation | Unspecified: ?V |
| RoHS Compliant (if Pb-free) | Yes (see below) |
|---|---|
| RoHS Exemption | None |
| China RoHS (if Pb-free) | Compliant |
| REACH Status (if Pb-free) | See REACH statement pdf (below) |
| CMRT Conflict Mineral Status | See CMRT Excel file (below) |
| EMRT Extended Mineral Status | See EMRT Excel file (below) |
| Termination Finish (if Pb-free) | e3 - Sn matt plated |
| Termination Finish (if Pb-bearing) | Not available |
| How to Specify Pb-Free | All part numbers are Pb-free |
| ECCN | EAR99 |
| Packing | Tape & reel |
|---|---|
| Quantity | - |
| Nett Weight Each | - |
| Reflow Process | Not applicable |
| MSL | Not applicable |
| Wave Process | Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time |
| Shelf-life | None defined, but solderability test prior to use is recommended after two years from date of manufacture |
| Launch Date | Pre-2000 |
|---|---|
| Lifecycle | Obsolete |
| EOL Date / YTEOL Estimate | EOL in Oct 2023 |
| Latest PCN Date | 10 May 23 |
| Alternative Part Number | MF1S |
| Datasheet | CMF | |
| Application Note | TN001 Advice on Storage Conditions for Fixed Resistors | |
| Application Note | TN002 Instant Access to RoHS REACH Conflict Mineral and other Compliance Data Online | |
| Application Note | TN003 Methods for Coding Resistor Values in Part Numbers | |
| Application Note | TN004 Methods for Marking Values on Resistors | |
| Application Note | TN005 EIA Standard Values for Resistors | |
| Application Note | TN007 Instant Access to Life Cycle and Obsolete Product Data Online | |
| Compliance | Dallas ISO 9001 | |
| Compliance | Dallas ISO 14001 2015 | |
| Compliance | RoHS CMF | |
| Compliance | REACH Statement Dallas | |
| Compliance | CMRT Conflict Mineral Dallas | |
| Compliance | EMRT Extended Mineral Dallas | |
| Compliance | Proposition 65 Declaration Dallas | |
| Compliance | TSCA Statement Dallas | |
| Compliance | Tin Whisker Report | |
| Product Change Notification | PCNs for CMF |
