Lifecycle:
Obsolete
Brand:
IRC
Series:

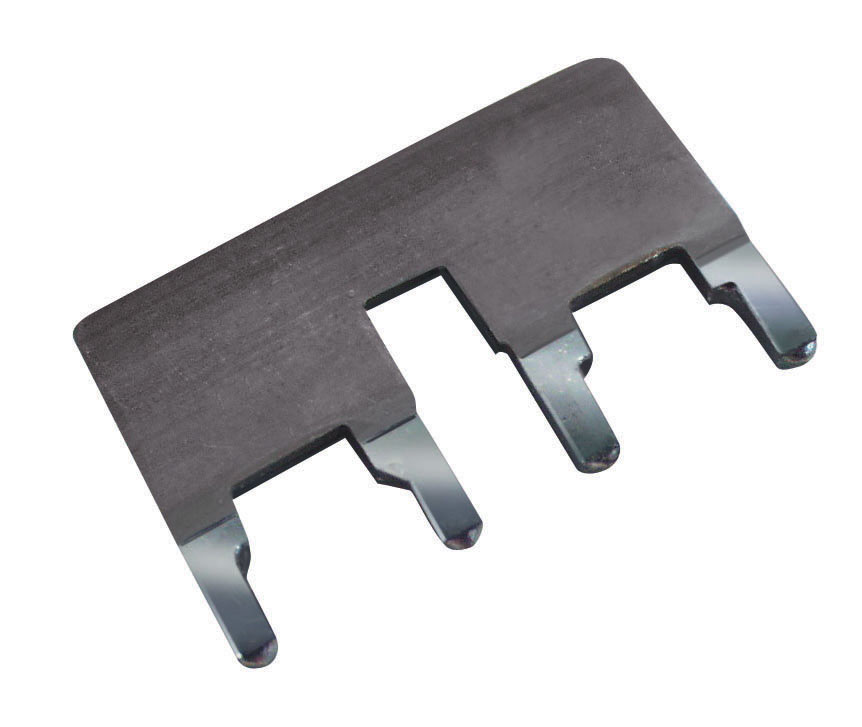

CSL
| Series | CSL |
|---|---|
| Application | Current sense |
| Mounting | Through hole |
| Package | Radial |
| Technology | Metal element |
| Approval | None |
| Example MPN | CSL5R001FLF |
| Termination Options |
|
| Power | 5W |
|---|---|
| Rated Ambient Temperature | 70°C |
| De-rate to 0W Ambient Temperature | 125°C |
| Max Ambient Temperature | 125°C |
| LEV | - |
| Resistance min | .25mΩ |
| Resistance max | 2.5mΩ |
| Critical Resistance (where applying LEV dissipates Pr) | N/A: -Ω |
| Best Tolerance | 1% |
| Best TCR | 55ppm/°C |
| Isolation Voltage of Insulation | Unspecified: ?V |
| RoHS Compliant (if Pb-free) | Yes (see below) |
|---|---|
| RoHS Exemption | None |
| China RoHS (if Pb-free) | Compliant |
| REACH Status (if Pb-free) | See REACH statement pdf (below) |
| CMRT Conflict Mineral Status | See CMRT Excel file (below) |
| EMRT Extended Mineral Status | See EMRT Excel file (below) |
| Termination Finish (if Pb-free) | e1 - SnAgCu |
| Termination Finish (if Pb-bearing) | 60/40 |
| How to Specify Pb-Free | Part number has LF suffix |
| ECCN | EAR99 |
| Packing | - |
|---|---|
| Quantity | - |
| Nett Weight Each | 2.03g |
| Reflow Process | Not applicable |
| MSL | Not applicable |
| Wave Process | Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time |
| Shelf-life | None defined, but solderability test prior to use is recommended after two years from date of manufacture |
| Launch Date | Pre-2000 |
|---|---|
| Lifecycle | Obsolete |
| EOL Date / YTEOL Estimate | EOL in May 2025 |
| Latest PCN Date | 9 May 25 |
| Alternative Part Number | - |
