CSS1

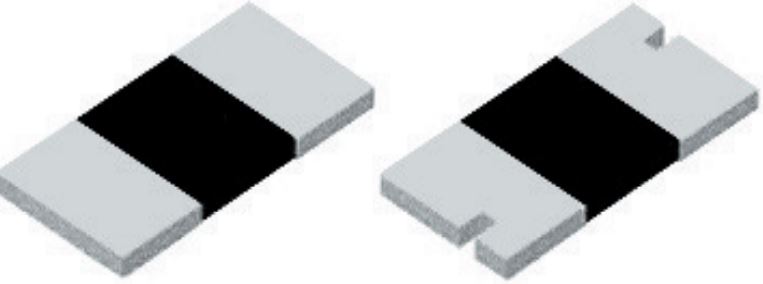

OBSOLETE Current sense chip resistor
Specifications
Basic Data
Electrical Data
Compliance Data
Processing Data
Life Cycle Data
Series
CSS
Application
Current sense
Mounting
SMD - solder
Package
SMD
Technology
Metal element
Approval
None
Example MPN
CSS-1-R001-J-7LF
Termination Options
-
Power
1.5W
Rated Ambient Temperature
0°C
De-rate to 0W Ambient Temperature
0°C
Max Ambient Temperature
0°C
LEV
50V
Resistance min
.5mΩ
Resistance max
3mΩ
Critical Resistance (where applying LEV dissipates Pr)
-
Tolerance
1%
TCR
20ppm/°C
Isolation Voltage of Insulation
Unspecified: ?V
RoHS Compliant (if Pb-free)
-
RoHS Exemption
-
China RoHS (if Pb-free)
-
REACH Status (if Pb-free)
-
CMRT Conflict Mineral Status
-
EMRT Extended Mineral Status
-
Termination Finish (if Pb-free)
-
Termination Finish (if Pb-bearing)
-
How to Specify Pb-Free
-
ECCN
-
Packing
-
Quantity
-
Nett Weight Each
-
Reflow Process
-
MSL
-
Wave Process
-
Shelf-life
-
Launch Date
-
Lifecycle
Obsolete
EOL Date / YTEOL Estimate
Date not recorded
Latest PCN Date
No PCNs
Alternative Part Number
