PW30

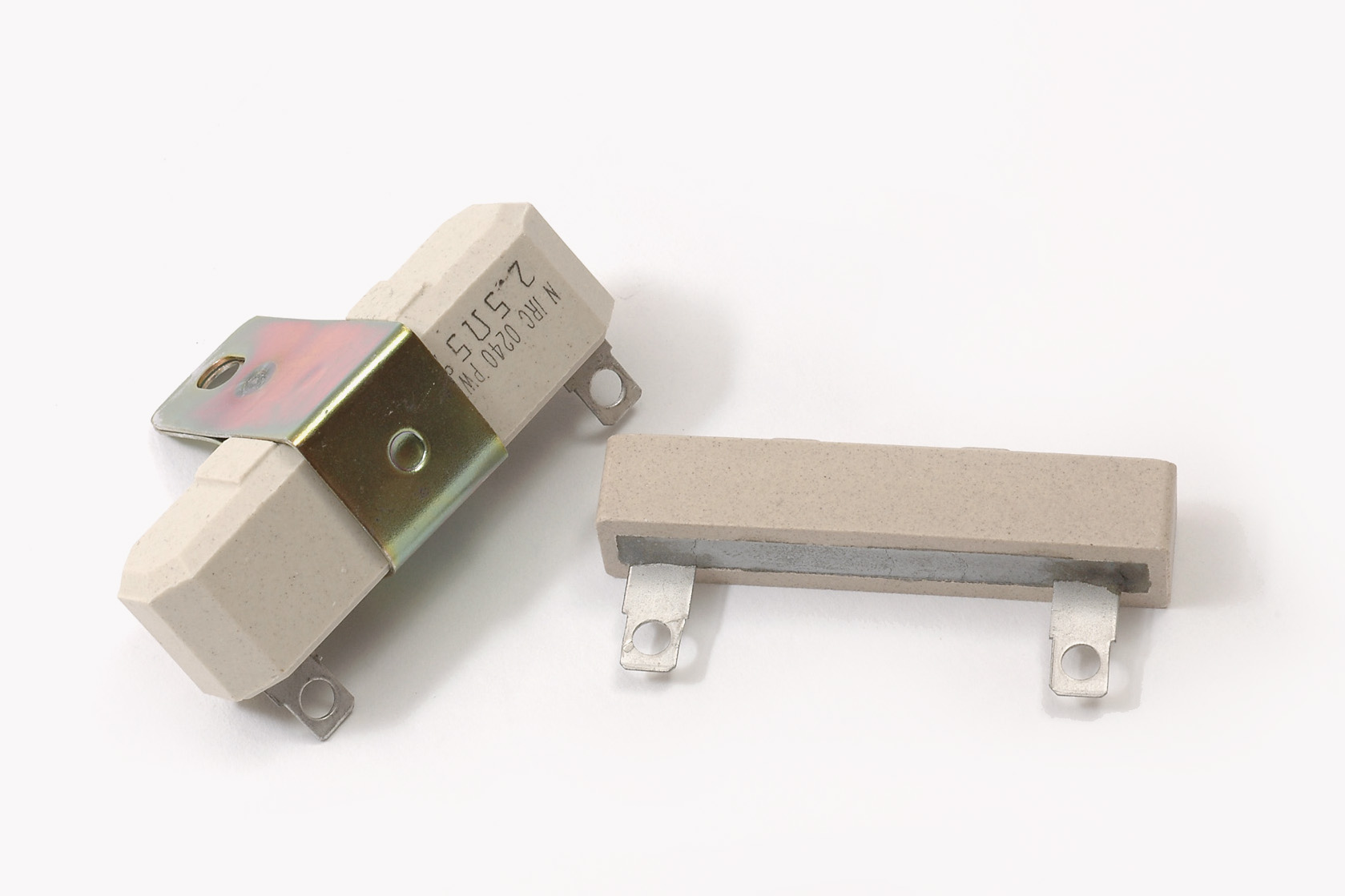

OBSOLETE General purpose radial leaded power wirewound resistor

Lifecycle:

Obsolete

Brand:

IRC

Series:

PW

Alternative Part Number:

WPRT30

Distributor Inventory
Data Sheet

Specifications

Series PW
Application High power
Mounting Non-PCB
Package Ceramic case power
Technology Wirewound
Approval None
Example MPN PW30BRK-1K2KI or PW30BRK1201KLF
Termination Options
  • Pb-free
  • Pb-bearing
Power 30W
Rated Ambient Temperature 25°C
De-rate to 0W Ambient Temperature 250°C
Max Ambient Temperature 150°C
LEV -
Resistance min 0.5Ω
Resistance max 1.2kΩ
Critical Resistance (where applying LEV dissipates Pr) -
Best Tolerance 5%
Best TCR 300ppm/°C
Isolation Voltage of Insulation -
RoHS Compliant (if Pb-free) Yes (see below)
RoHS Exemption None
China RoHS (if Pb-free) Compliant
REACH Status (if Pb-free) See REACH statement pdf (below)
CMRT Conflict Mineral Status See CMRT Excel file (below)
EMRT Extended Mineral Status See EMRT Excel file (below)
Termination Finish (if Pb-free) e3 - Sn matt plated
Termination Finish (if Pb-bearing) 60/40
How to Specify Pb-Free European PN has no PB suffix, USA PN has LF suffix
ECCN EAR99
Packing Bulk / box
Quantity -
Nett Weight Each -
Reflow Process Not applicable
MSL Not applicable
Wave Process Not applicable
Shelf-life None defined, but solderability test prior to use is recommended after two years from date of manufacture
Launch Date Pre-2000
Lifecycle Obsolete
EOL Date / YTEOL Estimate EOL in Sep 2020
Latest PCN Date 1 Jun 20
Alternative Part Number WPRT30
