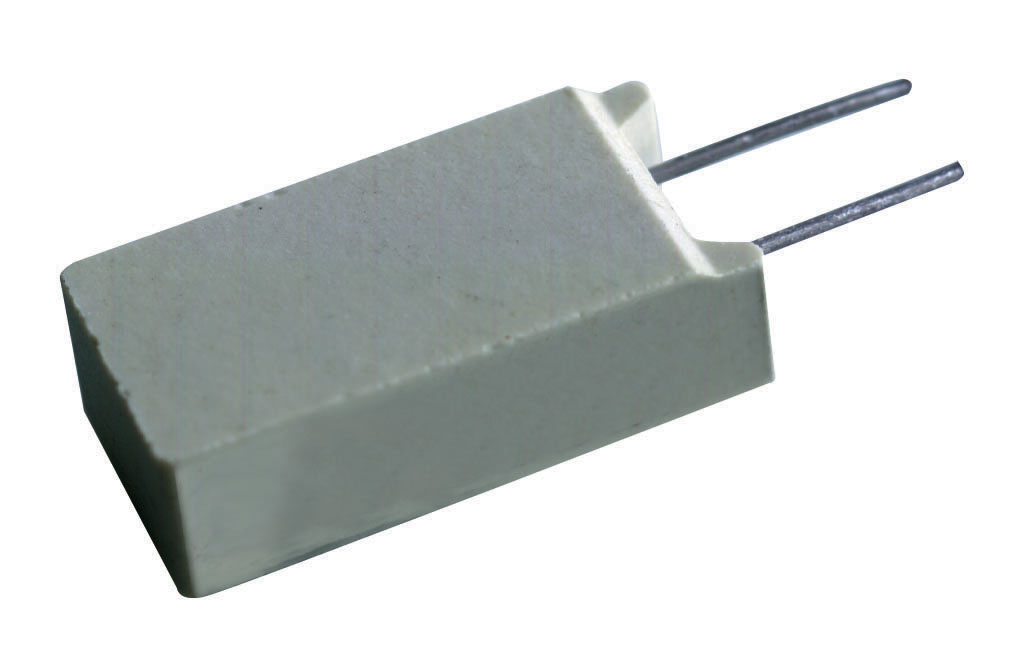

PWRG5

OBSOLETE General purpose power metal glaze resistor

Lifecycle:

Obsolete

Brand:

IRC

Series:

PWRG

Alternative Part Number:

SQM5(ww), SQM5(ox)

Distributor Inventory
Data Sheet

Specifications

Series PWRG
Application High power
Mounting Through hole
Package Radial
Technology Thick film
Approval None
Example MPN PWRG51202KLF
Termination Options
  • Pb-free
  • Pb-bearing
Power 5W
Rated Ambient Temperature 85°C
De-rate to 0W Ambient Temperature 250°C
Max Ambient Temperature 150°C
LEV 250V
Resistance min 1Ω
Resistance max 1MΩ
Critical Resistance (where applying LEV dissipates Pr) 12.5kΩ
Tolerance 1%
TCR 100ppm/°C
Isolation Voltage of Insulation -
RoHS Compliant (if Pb-free) -
RoHS Exemption -
China RoHS (if Pb-free) -
REACH Status (if Pb-free) -
CMRT Conflict Mineral Status -
EMRT Extended Mineral Status -
Termination Finish (if Pb-free) e3 - Sn matt plated
Termination Finish (if Pb-bearing) 60/40
How to Specify Pb-Free Part number has LF suffix
ECCN EAR99
Packing Bulk / box
Quantity 1000
Nett Weight Each -
Reflow Process Not applicable
MSL Not applicable
Wave Process Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time
Shelf-life None defined, but solderability test prior to use is recommended after two years from date of manufacture
Launch Date Pre-2000
Lifecycle Obsolete
EOL Date / YTEOL Estimate EOL in July 2018
Latest PCN Date 01 Apr 19
Alternative Part Number
  • SQM5(ww)
  • SQM5(ox)
