Lifecycle:
Obsolete
Brand:
BI Technologies
Series:

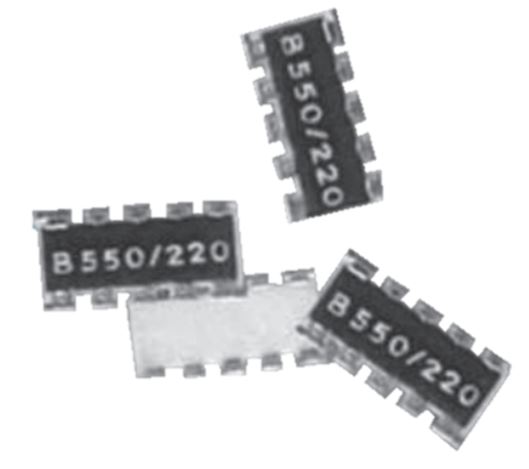

RC Network
| Series | RC Network |
|---|---|
| Application | Network / array |
| Mounting | SMD - solder |
| Package | Chip 2512 |
| Technology | Thick film |
| Approval | None |
| Example MPN | RC6E101M101M7 |
| Termination Options | Pb-free |
| Power | 0.063W |
|---|---|
| Rated Ambient Temperature | 70°C |
| De-rate to 0W Ambient Temperature | 125°C |
| Max Ambient Temperature | 125°C |
| LEV | - |
| Resistance min | 20Ω |
| Resistance max | 1MΩ |
| Critical Resistance (where applying LEV dissipates Pr) | - |
| Best Tolerance | 5% |
| Best TCR | 200ppm/°C |
| Isolation Voltage of Insulation | - |
| RoHS Compliant (if Pb-free) | Yes (see below) |
|---|---|
| RoHS Exemption | 7(c)-I "Pb in glass" |
| China RoHS (if Pb-free) | Contains Pb. EFUP 50 Years |
| REACH Status (if Pb-free) | See REACH statement pdf (below) |
| CMRT Conflict Mineral Status | See CMRT Excel file (below) |
| EMRT Extended Mineral Status | No EMRT available |
| Termination Finish (if Pb-free) | e3 - Sn matt plated |
| Termination Finish (if Pb-bearing) | Not available |
| How to Specify Pb-Free | All part numbers are Pb-free |
| ECCN | EAR99 |
| Packing | Plastic tape & reel |
|---|---|
| Quantity | 4000 |
| Nett Weight Each | - |
| Reflow Process | J-STD-020E |
| MSL | 1 |
| Wave Process | Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time |
| Shelf-life | None defined, but solderability test prior to use is recommended after two years from date of manufacture |
| Launch Date | Pre-2000 |
|---|---|
| Lifecycle | Obsolete |
| EOL Date / YTEOL Estimate | EOL in Sep 2020 |
| Latest PCN Date | 16 Mar 20 |
| Alternative Part Number | - |
| Datasheet | RC6 | |
| Application Note | TN001 Advice on Storage Conditions for Fixed Resistors | |
| Application Note | TN002 Instant Access to RoHS REACH Conflict Mineral and other Compliance Data Online | |
| Application Note | TN003 Methods for Coding Resistor Values in Part Numbers | |
| Application Note | TN005 EIA Standard Values for Resistors | |
| Application Note | TN006 Recommended Layouts for SMD Resistors | |
| Application Note | TN007 Instant Access to Life Cycle and Obsolete Product Data Online | |
| Compliance | RoHS RC Net | |
| Compliance | REACH Statement Bedlington | |
| Compliance | CMRT Conflict Mineral Bedlington | |
| Compliance | Proposition 65 Declaration Bedlington | |
| Compliance | TSCA Statement Bedlington | |
| Compliance | Tin Whisker Report | |
| Product Change Notification | PCNs for RC Network |
