WCA-08

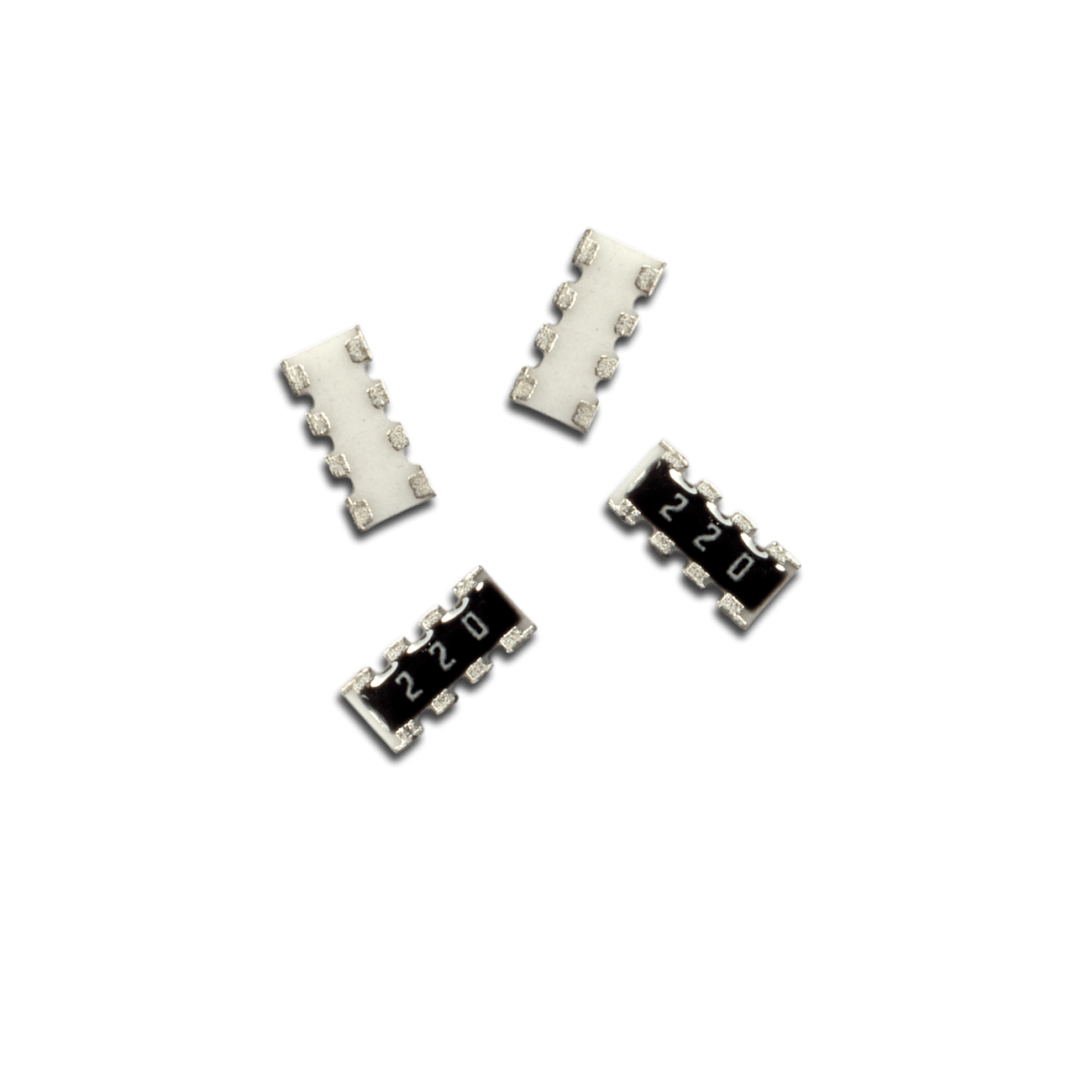

OBSOLETE Thick film chip resistor array, 4 element 1206 convex

Lifecycle:

Obsolete

Brand:

IRC

Series:

WCA

Alternative Part Number:

BCN164

Distributor Inventory
Data Sheet

Specifications

Series WCA
Application General purpose
Mounting SMD - solder
Package Chip array
Technology Thick film
Approval None
Example MPN WCA-0804LF-102-J-PLT
Termination Options Pb-free
Power 0.163W
Rated Ambient Temperature 70°C
De-rate to 0W Ambient Temperature 125°C
Max Ambient Temperature 125°C
LEV 50V
Resistance min 10Ω
Resistance max 1MΩ
Critical Resistance (where applying LEV dissipates Pr) 15.337kΩ
Tolerance 1%
TCR 200ppm/°C
Isolation Voltage of Insulation Unspecified: ?V
RoHS Compliant (if Pb-free) -
RoHS Exemption -
China RoHS (if Pb-free) -
REACH Status (if Pb-free) -
CMRT Conflict Mineral Status -
EMRT Extended Mineral Status -
Termination Finish (if Pb-free) e3 - Sn matt plated
Termination Finish (if Pb-bearing) Not available
How to Specify Pb-Free All part numbers are Pb-free
ECCN -
Packing Paper tape & reel
Quantity 5000
Nett Weight Each -
Reflow Process J-STD-020D
MSL 1
Wave Process Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time
Shelf-life None defined, but solderability test prior to use is recommended after two years from date of manufacture
Launch Date Pre-2000
Lifecycle Obsolete
EOL Date / YTEOL Estimate EOL in 2015
Latest PCN Date 24 Jul 15
Alternative Part Number BCN164
