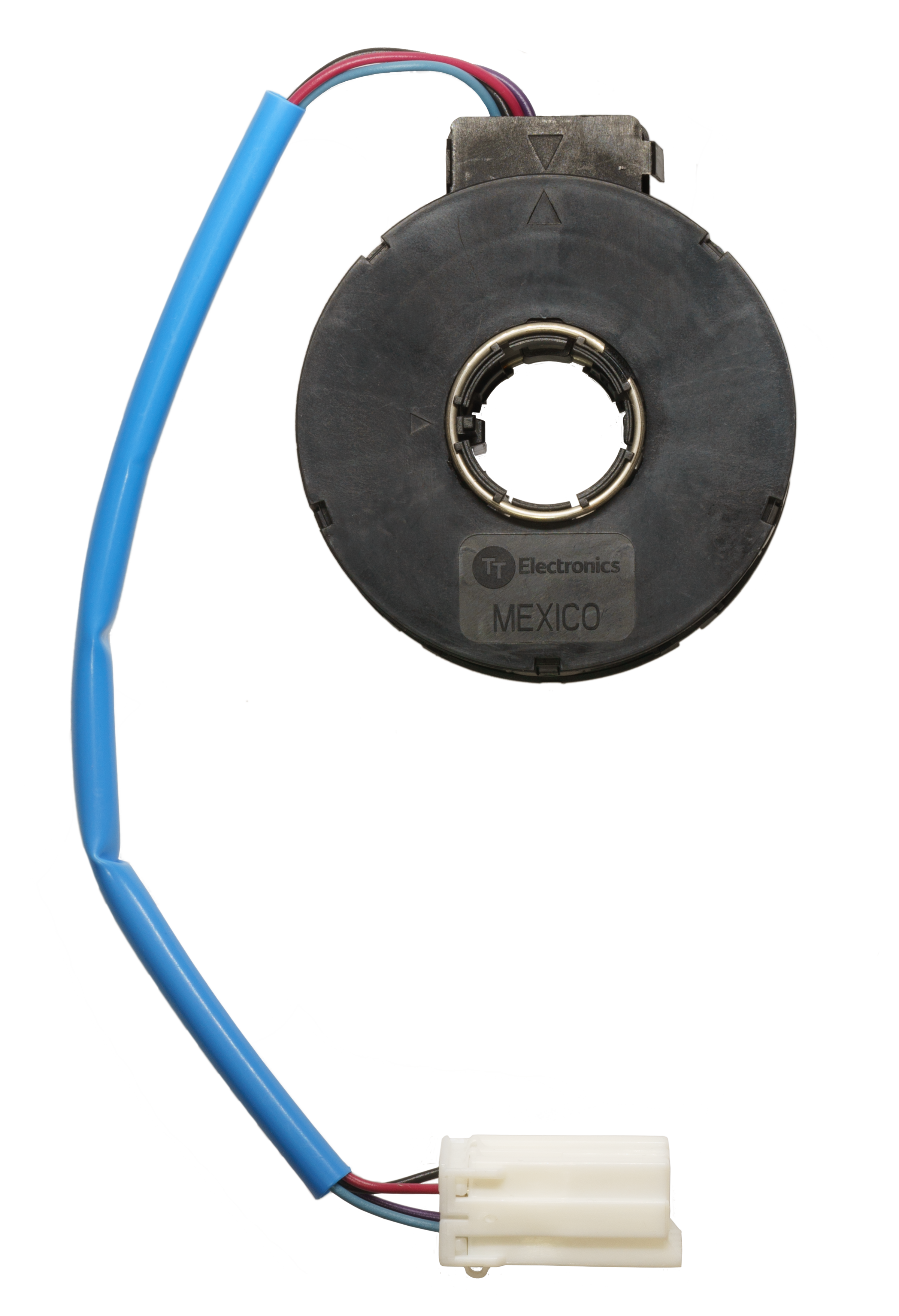

SX-4462A

OBSOLETE Steering Torque Only Sensors

Brand:

BI Technologies

Lifecycle:

Obsolete

checkmark

Torque ±5°

checkmark

Redundant outputs for full diagnostics

checkmark

Lead-free

checkmark

RoHS 2 compliant

checkmark

Highly linear near zero degree position

checkmark

Programmable outputs

checkmark

Programmable zero offset

checkmark

Voltage clamps for open/short detection

checkmark

>10 million cycle life

checkmark

Simple push-on steering shaft assembly (no welding or glue required)

checkmark

Lightweight

checkmark

Standard product available - no NRE

Specifications

Technology Non-Contacting
Torque Angle 5+/- °
Position Angle -
Number of Wires 4
Connector Model Yazaki 7122-8365
Lifecycle Obsolete
EOL Estimate EOL in 2018
Latest PCN Date No PCNs
Alternative SX-4428
