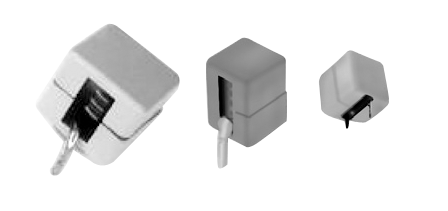

HM55-31XXXLF

Shielded cube compact low cost inductor

Brand:

BI Technologies

Quote Request
Data Sheet

Specifications

Mounting TH
Shape Cube
Length 13.8mm
Width 13.5mm
Height 13.5mm
Inductance Type -
Packaging Options Tray
RoHS Compliant Yes
Inductance Min 1.4uH
Inductance Max 5.6uH
Rated Current @ 25°C ambient Min 9A
Rated Current @ 25°C ambient Max 35A
Saturation Current @ 25°C ambient Min -
Saturation Current @ 25°C ambient Max -
DC Resistance Min 1mΩ
DC Resistance Max 7.3mΩ
Operating Temperature Min -40°C
Operating Temperature Max 155°C
Application Motherboards, laptops and general purpose use
AEC-Q200 Certified False
