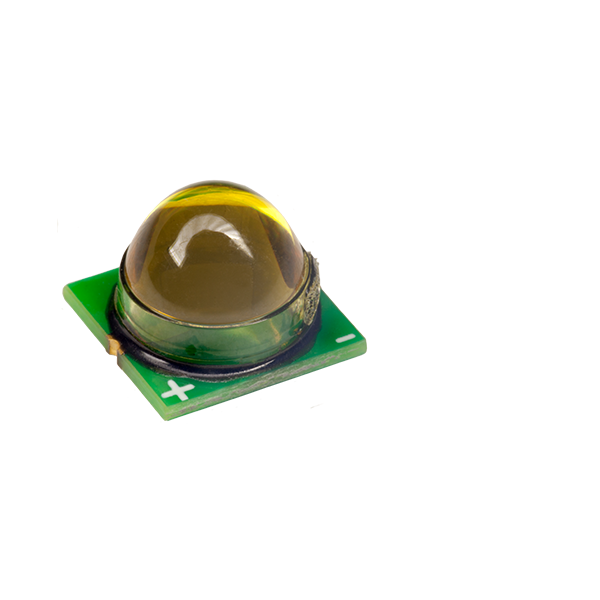

OP207CL
Infrared LED
Lifecycle:
Active (Mature)
Brand:
Optek Technology
200 mA ID
Ultra small surface mount package
RDS(ON) < 5-
Pin-out compatible with most SOT23 MOSFETS
Specifications
| Applications |
|
|---|---|
| Packaging | SMD 9.9mm x 9.9mm |
| Lead Spacing | 9.9mm |
| Component Type | Infrared LED |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | - |
| Number of Elements | 1 |
| Material | GaAlAs |
| Color | - |
| Lead Length Min | - |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | 855nm |
|---|---|
| Beam Angle | 4.5° |
| Viewing Angle | - |
| Output Power (mW/cm2) Min/Max | 10mW @ IF= 50mAmW / cm2 |
| Operating Temperature | -40°C ~ 105°C |
| Data Rate Max | - |
| Rise Time Typ | 22 / 22ns |
| Reverse Voltage | 10T |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | - |
| VCE Max | - |
| VCC Range | - |
| IF Typ/Max | 20 / 50/100mA |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
