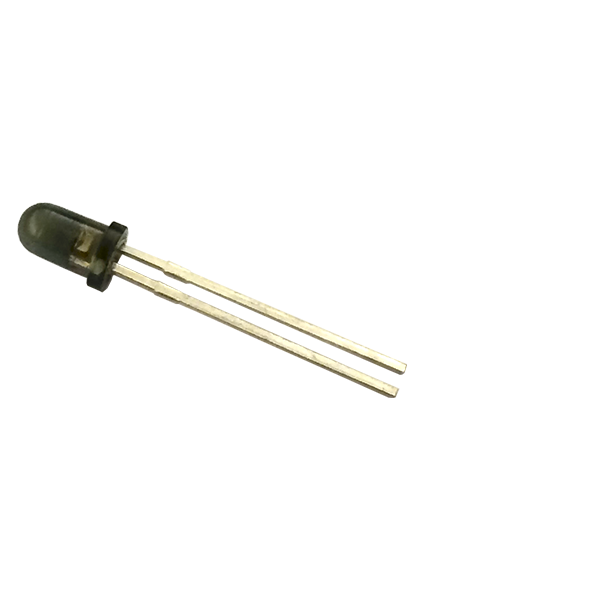

OP505A
Phototransistor
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Designed for non-contact switching operations
Operates over a broad range of supply voltages
Excellent temperature stability operates in harsh environments
Suitable for military and space applications
Processing patterned after class B or S of MIL-STD-883
Through Hole 0.40" [10.16 mm] lead length minimum
ESD Rating of Class 3B per MIL-STD-883G, M3015.7, HB model
Specifications
| Applications |
|
|---|---|
| Packaging | T-1 [3mm] |
| Lead Spacing | .050" |
| Component Type | Phototransistor |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | Phototransistor |
| Number of Elements | 1 |
| Material | Silicon |
| Color | Blue-tinted |
| Lead Length Min | 0.5" |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | - |
|---|---|
| Beam Angle | - |
| Viewing Angle | 20° |
| Output Power (mW/cm2) Min/Max | - |
| Operating Temperature | -40°C ~ 100°C |
| Data Rate Max | - |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | NPN Silicon Phototransistor |
| VCE Max | 30V |
| VCC Range | - |
| IF Typ/Max | - |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | 4.3mA |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
