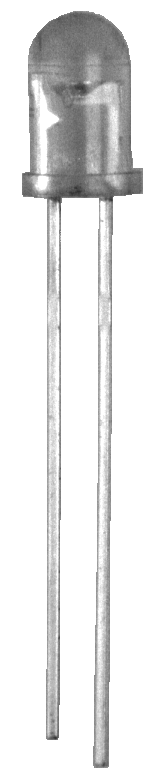

OP599C
Phototransistor
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Processed to OPTEK's military screening program, patterned after MIL-PRF-19500
Miniature hermetically sealed "pill" package
Twice the power output of GaAs at same drive current
"S" level screening available
Mechanically and spectrally matched to OP600 phototransistors
Specifications
| Applications | Non-contact reflective object sensor, Assembly line automation, Machine automation, Machine safety, End of travel sensor, Door sensor |
|---|---|
| Packaging | T-1 3/4 |
| Lead Spacing | .100" |
| Component Type | Phototransistor |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | Phototransistor |
| Number of Elements | 1 |
| Material | - |
| Color | - |
| Lead Length Min | 0.75" |
| Lead Length Max | 0.75" |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | - |
|---|---|
| Beam Angle | - |
| Viewing Angle | 20° |
| Output Power (mW/cm2) Min/Max | - |
| Operating Temperature | -40°C ~ 100°C |
| Data Rate Max | - |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | - |
| VCE Max | 30V |
| VCC Range | - |
| IF Typ/Max | - |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | 0.4mA |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
