OP801WSL
Phototransistor
Lifecycle:
Active (Mature)
Brand:
Optek Technology

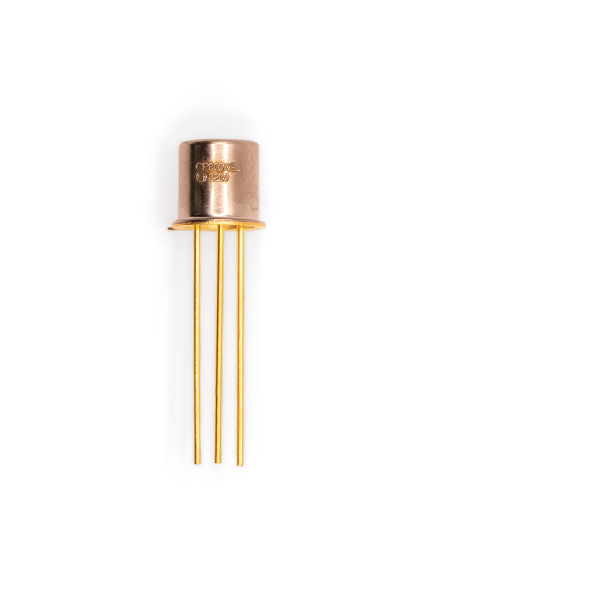

TO-46 hermetically sealed package with lens
Twice the power output of GaAs at same drive current
Characterized to define infrared energy along mechanical axis of device
Narrow beam angle
Processed to MIL-PRF-19500
Specifications
| Applications |
|
|---|---|
| Packaging | TO-46 Flat Window |
| Lead Spacing | .100" Dia. |
| Component Type | Phototransistor |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | Phototransistor |
| Number of Elements | 1 |
| Material | - |
| Color | - |
| Lead Length Min | 0.5" |
| Lead Length Max | 0.5" |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | - |
|---|---|
| Beam Angle | - |
| Viewing Angle | 75° |
| Output Power (mW/cm2) Min/Max | - |
| Operating Temperature | -65°C ~ 125°C |
| Data Rate Max | - |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | - |
| VCE Max | 30V |
| VCC Range | - |
| IF Typ/Max | - |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | 0.5mA |
| Light Current IC(ON) Max | 3mA |
| ICCL/ICCH | - |
