OHB900

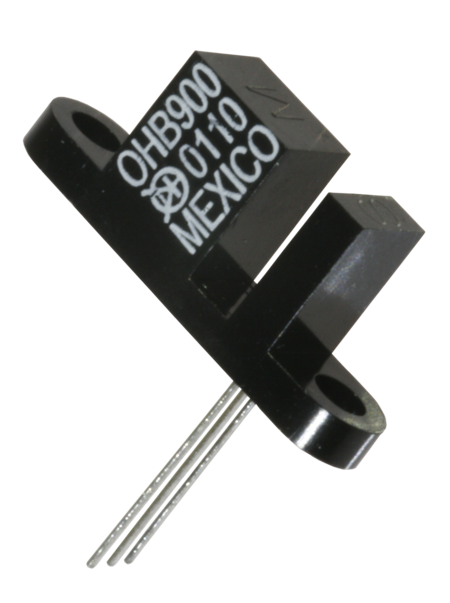

Hallogic Hall-Effect sensor assembly
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Non-contact motion sensing
Operates over a broad range of supply voltages (4.5 V to 25 V)
Excellent temperature stability
Hall element, voltage regulator, linear amplifier and Schmitt trigger on a single Hallogic silicon chip
Performs in dirty environments over wide temperature range
0.125” (3.18 mm) wide gap
Specifications
| Applications |
|
|---|---|
| Package | Slotted |
| High Reliability | False |
| Hall Effect Sensor Type | Hallogic Hall-Effect Sensor Assembly |
| Screening Level | - |
| Hall Effect | Yes |
| Photologic | No |
| Lead Length Min | - |
| Lead Length Max | - |
| RoHs Compliance | Y |
| VCE Max | 25V |
|---|---|
| VCC Range | 4.5 / 25V |
| Output Type | Logic |
| Operating Point (Min/Typ/Max Gauss) | 0 / 90 / 180G |
| Release Point (Min/Typ/Max Gauss) | -100 / 65 / 100G |
| Hysteresis (Min/Typ/Max Gauss) | 10 / 25 / 100G |
