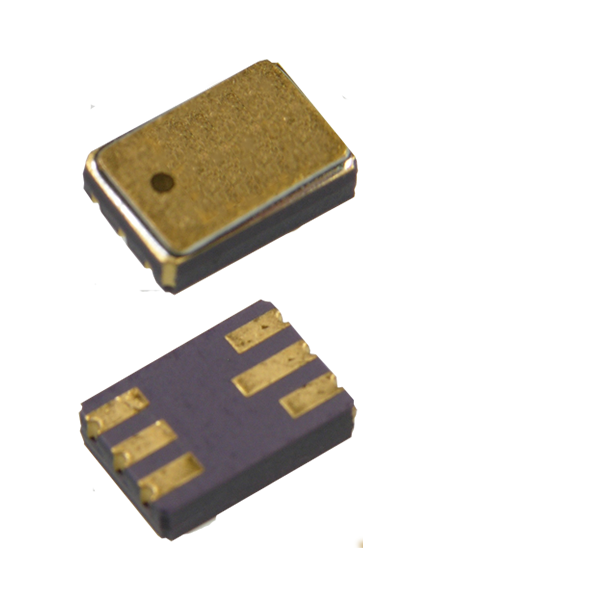

JANTXV4N49U

High Reliability / JAN - Optically Coupled Isolator

Lifecycle:

Active (Mature)

Brand:

Optek Technology

Distributor Inventory
Data Sheet
checkmark

Surface mount (SM), leadless chip carrier (LCC)

checkmark

1kV electrical isolation

checkmark

Base contact provided for conventional transistor biasing

checkmark

JAN, JANTX and JANTXV devices are processed to MIL-PRF-19500

Specifications

Applications
  • Military equipment
  • High-reliability environments
  • High voltage isolation between input and output
  • Electrical isolation in dirty environments
  • Industrial equipment
  • Medical equipment
  • Office equipment
Package 6-Pin Ceramic LCC
High Reliability True
Screening Level Military (TX, TXV)
Hall Effect No
Photologic False
Lead Length Min / Max -
RoHs Compliance Y
Isolation Voltage 1kV
Sensor Type Phototransistor with Base
CTR Min 200% @ 1mA
Operating Temperature -55°C ~ 125°C
Wavelength 935nm
Rise / Fall 20µs / 20µs (Max)ns
Prop Delay -
VCE Max 40V
VCC Range -
IF Typ/Max 40mA
CTR Max 10
Light Current IC(ON) Min -
Alternative Part Number -
