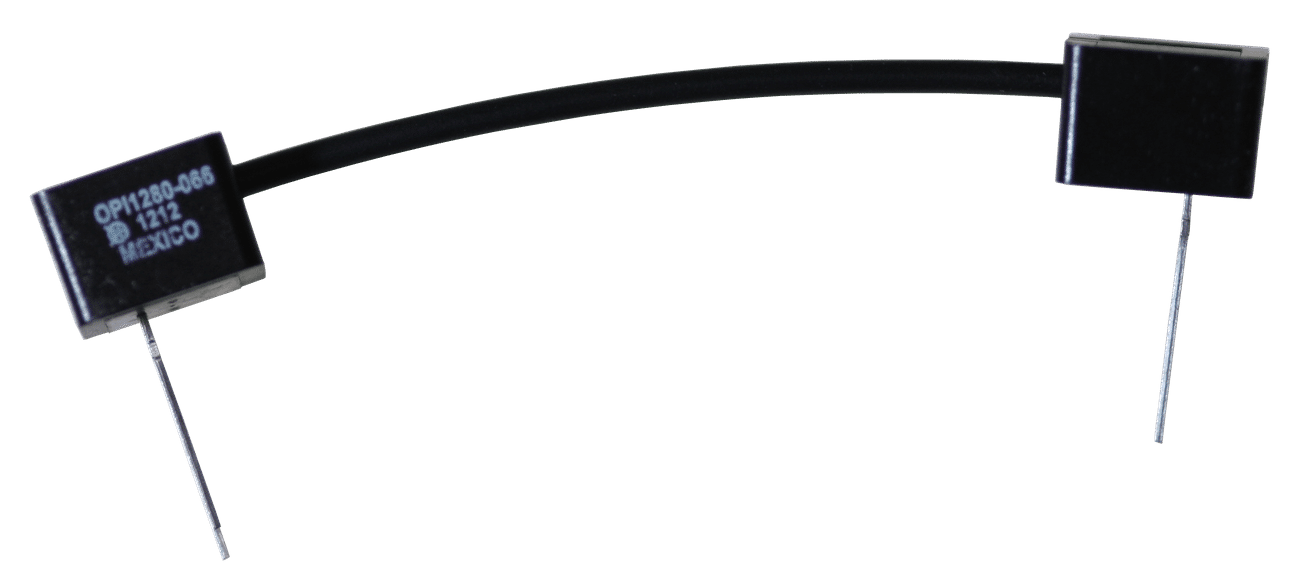

OPI1280-066

Optoisolator

Lifecycle:

Active (Mature)

Brand:

Optek Technology

Distributor Inventory
Data Sheet
checkmark

Opaque plastic housings

checkmark

High noise immunity

checkmark

Visible red LED with phototransistor output

checkmark

0.100" (2.54mm) lead spacing

checkmark

Data transfer through plastic fiber optic cable

checkmark

Isolation voltage 15kV (OPI1280-032), longer versions higher

Specifications

Applications
  • High voltage isolation between input and output
  • Electrical isolation in dirty environments
  • Industrial equipment
  • Medical equipment
  • Office equipment
Package Flexible-Link
High Reliability False
Screening Level -
Hall Effect No
Photologic False
Lead Length Min / Max 0.43"
RoHs Compliance Y
Isolation Voltage 15kV
Sensor Type Phototransistor
CTR Min -
Operating Temperature -20°C ~ 75°C
Wavelength 890nm
Rise / Fall -ns
Prop Delay -
VCE Max 30V
VCC Range -
IF Typ/Max -
CTR Max -
Light Current IC(ON) Min 0.36mA
Alternative Part Number -
