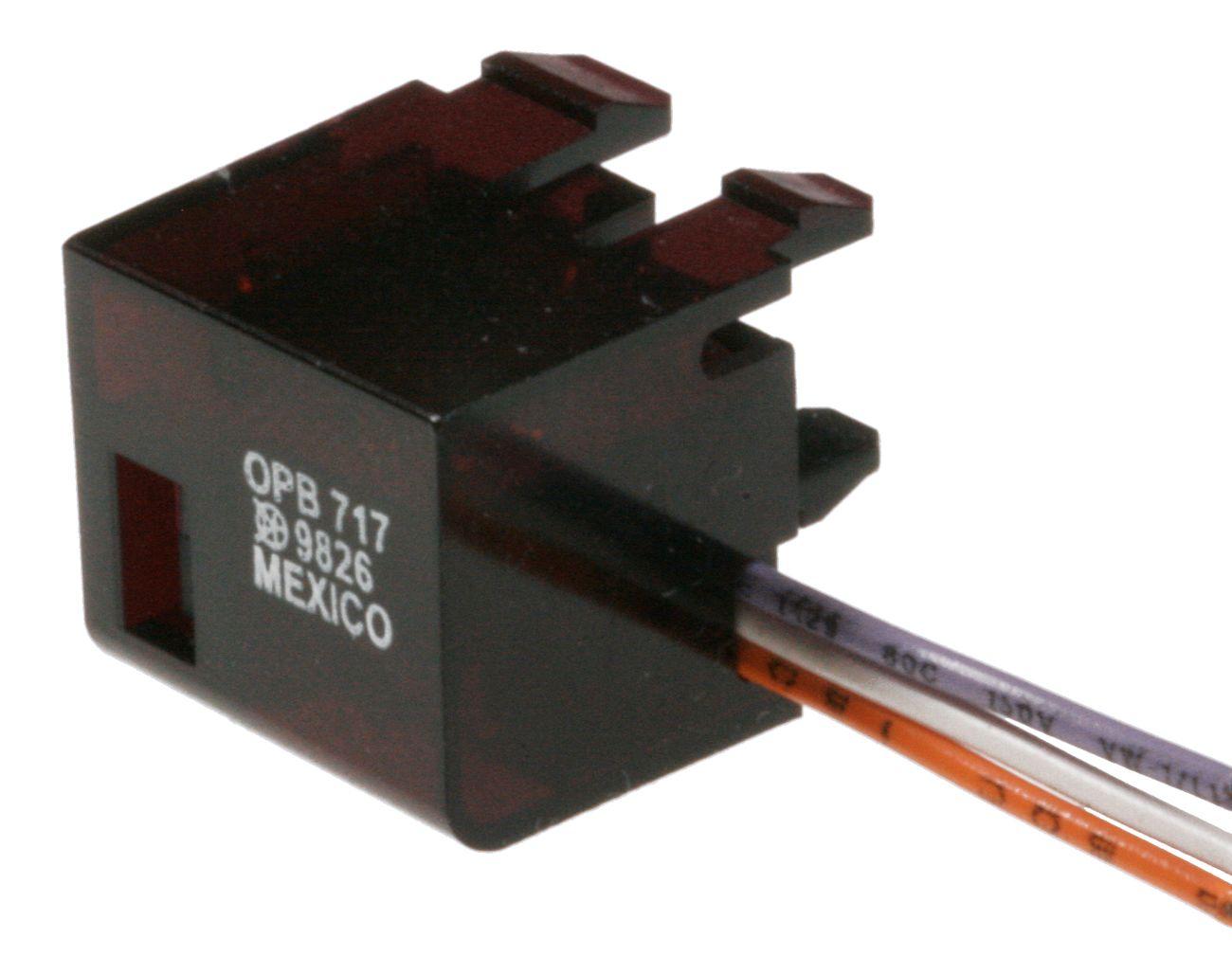

OPB717Z
Object Reflective
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Focused for maximum sensitivity
.5” (12.700mm) sensing distance
Panel mount
Choice of output configurations
18” (457.200mm) minimum wire length
Specifications
| Applications | Designed to replace conventional mechanical limit switches where long life and reliability are critical |
|---|---|
| Package Termination | 18" / 26 AWG Wire |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | Yes |
| Photo Detector Type | - |
| Material | - |
| Color | - |
| Lead Length Min | - |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Output Type | Inv-Totem-Pole |
|---|---|
| Test Distance | 0.50" |
| Operating Temperature | -40°C ~ 85°C |
| Focused / Non-Focused | Focused |
| Endlooker / Sidelooker | - |
| Wavelength | 890nm |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Hysteresis Min (Gauss) | - |
| Hysteresis Max (Gauss) | - |
| Hysteresis Typ (Gauss) | - |
| VCE Max | - |
| VCC Range | 4.75 / 5.25V |
| IF Typ/Max | - |
| Isolation Voltage Min | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| Input/Output Power | - |
| ICCL/ICCH | 0.1 / .01mA |
| Supply Voltage | 4.75 / 5.25VCC |
