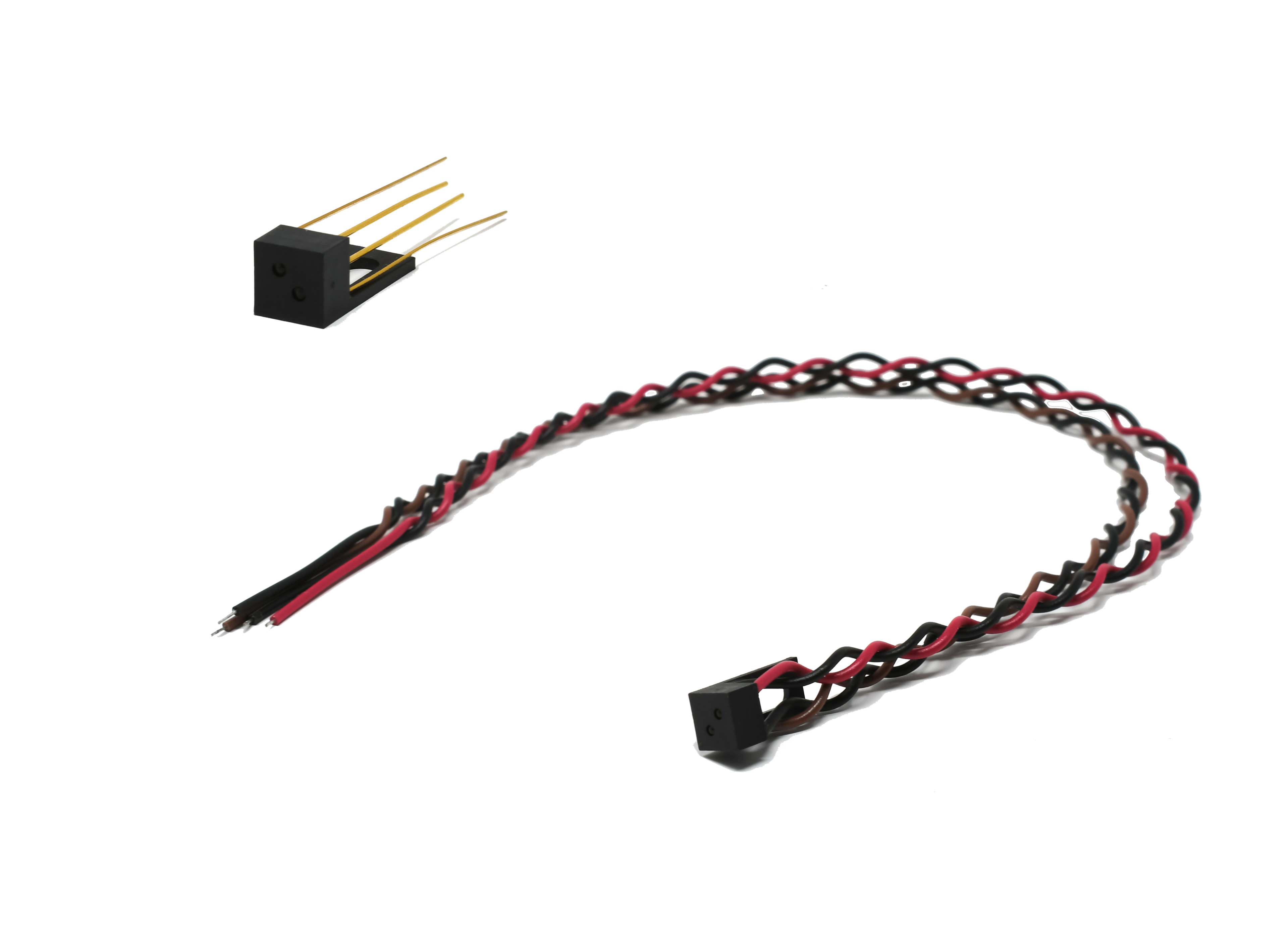

OPB735AWZ
Reflective Object Sensor
Lifecycle:
Active
Brand:
Optek Technology
Choice of phototransistor or photodarlington output
Unfocused for sensing diffuse surfaces
Non-conductive plastic housing
Low profile to facilitate stacking
#28 AWG UL rated lead wire in 12” ( 300 mm) length
Specifications
| Applications |
|
|---|---|
| Package Termination | 12" #28 AWG UL Rated Lead Wire |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | Phototransistor |
| Material | Black Plastic |
| Color | Black |
| Lead Length Min | 12" |
| Lead Length Max | 12" |
| Receiver Type | Phototransistor |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Output Type | Open Collector |
|---|---|
| Test Distance | 0.5" (12.7mm) |
| Operating Temperature | -55°C ~ 100°C |
| Focused / Non-Focused | Non-Focused |
| Endlooker / Sidelooker | Endlooker |
| Wavelength | 890nm |
| Rise Time Typ | 15ns |
| Reverse Voltage | 5T |
| Peak Response Wavelength | 890nm |
| Spectral Response Wavelength | - |
| Hysteresis Min (Gauss) | - |
| Hysteresis Max (Gauss) | - |
| Hysteresis Typ (Gauss) | - |
| VCE Max | 30V |
| VCC Range | - |
| IF Typ/Max | 30 / 75mA |
| Isolation Voltage Min | - |
| Light Current IC(ON) Min | 0.04mA |
| Light Current IC(ON) Max | - |
| Input/Output Power | - |
| ICCL/ICCH | - |
| Supply Voltage | - |
