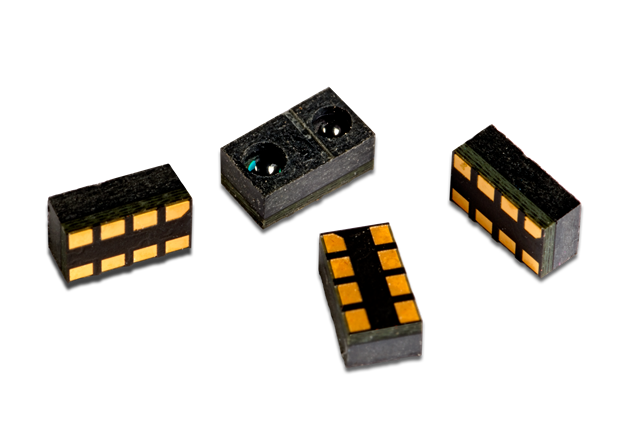

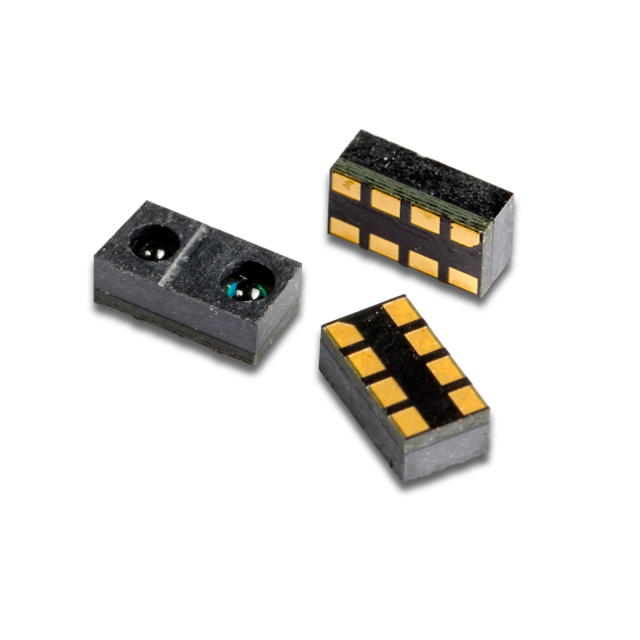

OPB9000
Photologic V Reflective Sensor
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Market leading 25k+ lux ambient light immunity
Programmable output configuration and sensitivity level
Single-command calibration with on-chip EEPROM
Temperature-compensated LED drive
6-s response time
Pulsed synchronous drive-detection
Surface mount package
Small dimensions: L 4.0mm x W 2.2mm x H 1.46mm
-40C to +85C operating temperature range
2.7V to 5.5V supply voltage
Ideal for industrial and medical applications
Specifications
| Applications |
|
|---|---|
| Package Termination | Surface Mount |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | - |
| Material | - |
| Color | - |
| Lead Length Min | - |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Output Type | Logic, Programmable |
|---|---|
| Test Distance | - |
| Operating Temperature | -40°C ~ 85°C |
| Focused / Non-Focused | Non-Focused |
| Endlooker / Sidelooker | Endlooker |
| Wavelength | 850nm |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Hysteresis Min (Gauss) | - |
| Hysteresis Max (Gauss) | - |
| Hysteresis Typ (Gauss) | - |
| VCE Max | - |
| VCC Range | 2.7 / 5.5V |
| IF Typ/Max | - |
| Isolation Voltage Min | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| Input/Output Power | 0.16 / 3.1mW/cm2 |
| ICCL/ICCH | - |
| Supply Voltage | 2.7V ~ 5.5V |
