C0404A

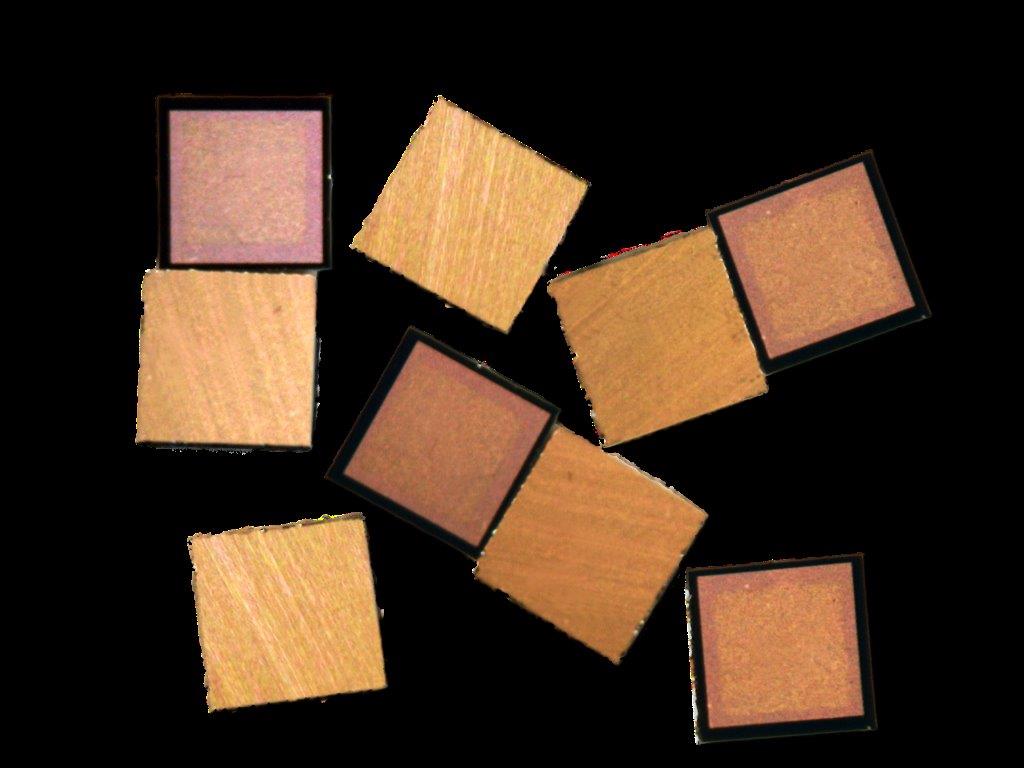

OBSOLETE Wire bondable chip capacitor

Brand:

IRC

Series:

WBC-Capacitor

Lifecycle:

Obsolete

Specifications

Series WBC-Capacitor
Application High reliability
Mounting SMD - wire-bond
Package Bare silicon die
Technology TaN film
Approval -
Example MPN WBC-C0404AG-102K
Termination Options Pb-free
Power -
Rated Ambient Temperature -
De-rate to 0W Ambient Temperature -
Max Ambient Temperature 125°C
LEV -
Resistance min -
Resistance max -
Critical Resistance (where applying LEV dissipates Pr) -
Tolerance -
TCR -
Isolation Voltage of Insulation -
RoHS Compliant (if Pb-free) Yes (see below)
RoHS Exemption None
China RoHS (if Pb-free) Compliant
REACH Status (if Pb-free) Reviewed to 223 SVHCs (see below)
CMRT Conflict Mineral Status Rev 6.1 Next update May 2022 (see below)
EMRT Extended Mineral Status Rev 2.2 Next update May 2022 (see below)
Termination Finish (if Pb-free) Al
Termination Finish (if Pb-bearing) Not available
How to Specify Pb-Free All part numbers are Pb-free
ECCN EAR99
Packing Tray
Quantity -
Nett Weight Each -
Reflow Process Not applicable
MSL Not applicable
Wave Process Not applicable
Shelf-life None defined
Launch Date Pre-2000
Lifecycle Obsolete
EOL Date / YTEOL Estimate EOL in Jul 2020
Latest PCN Date 15 Jul 20
Alternative Product No alternative
