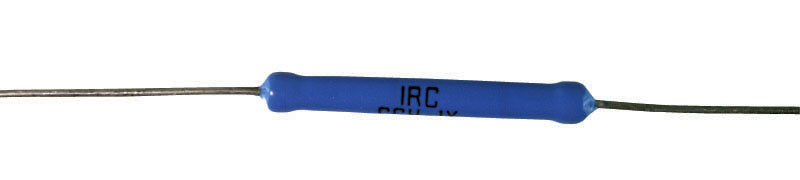

CGX1/2

OBSOLETE Precision high voltage axial resistor

Lifecycle:

Obsolete

Brand:

IRC

Series:

CGX

Alternative Part Number:

VRW37

Distributor Inventory
Data Sheet

Specifications

Series CGX
Application High value / voltage
Mounting Through hole
Package Axial
Technology Thick film
Approval None
Example MPN CGX1/21002205FLF
Termination Options
  • Pb-free
  • Pb-bearing
Power 0.5W
Rated Ambient Temperature 70°C
De-rate to 0W Ambient Temperature 175°C
Max Ambient Temperature 175°C
LEV 3kV
Resistance min 500kΩ
Resistance max 1GΩ
Critical Resistance (where applying LEV dissipates Pr) 18MΩ
Best Tolerance 1%
Best TCR 50ppm/°C
Isolation Voltage of Insulation -
RoHS Compliant (if Pb-free) -
RoHS Exemption -
China RoHS (if Pb-free) -
REACH Status (if Pb-free) -
CMRT Conflict Mineral Status -
EMRT Extended Mineral Status -
Termination Finish (if Pb-free) e3 - Sn matt plated
Termination Finish (if Pb-bearing) 60/40
How to Specify Pb-Free Part number has LF suffix
ECCN EAR99
Packing Bulk / box
Quantity 500
Nett Weight Each -
Reflow Process Not applicable
MSL Not applicable
Wave Process Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time
Shelf-life None defined, but solderability test prior to use is recommended after two years from date of manufacture
Launch Date Pre-2000
Lifecycle Obsolete
EOL Date / YTEOL Estimate EOL in Jun 2019
Latest PCN Date 01 Apr 19
Alternative Part Number VRW37
