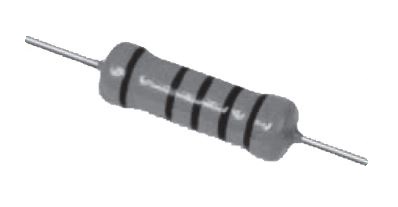

CMO8

OBSOLETE Commercial metal oxide resistor

Lifecycle:

Obsolete

Brand:

IRC

Series:

CMO

Alternative Part Number:

SQP10(ww), SQP10(ox)

Distributor Inventory
Data Sheet

Specifications

Series CMO
Application General purpose
Mounting Through hole
Package Axial
Technology Metal oxide
Approval None
Example MPN CMO81001JLF
Termination Options Pb-free
Power 8W
Rated Ambient Temperature 70°C
De-rate to 0W Ambient Temperature 235°C
Max Ambient Temperature 235°C
LEV 750V
Resistance min 30Ω
Resistance max 200kΩ
Critical Resistance (where applying LEV dissipates Pr) 70.3kΩ
Best Tolerance 2%
Best TCR 350ppm/°C
Isolation Voltage of Insulation 750V
RoHS Compliant (if Pb-free) Yes (see below)
RoHS Exemption None
China RoHS (if Pb-free) Compliant
REACH Status (if Pb-free) See REACH statement pdf (below)
CMRT Conflict Mineral Status See CMRT Excel file (below)
EMRT Extended Mineral Status See EMRT Excel file (below)
Termination Finish (if Pb-free) e3 - Sn matt plated
Termination Finish (if Pb-bearing) Not available
How to Specify Pb-Free All part numbers are Pb-free
ECCN EAR99
Packing Tape & reel
Quantity -
Nett Weight Each -
Reflow Process Not applicable
MSL Not applicable
Wave Process Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time
Shelf-life None defined, but solderability test prior to use is recommended after two years from date of manufacture
Launch Date Pre-2000
Lifecycle Obsolete
EOL Date / YTEOL Estimate EOL in Oct 2023
Latest PCN Date 10 May 23
Alternative Part Number
  • SQP10(ww)
  • SQP10(ox)
