Lifecycle:
Obsolete
Brand:
IRC
Series:

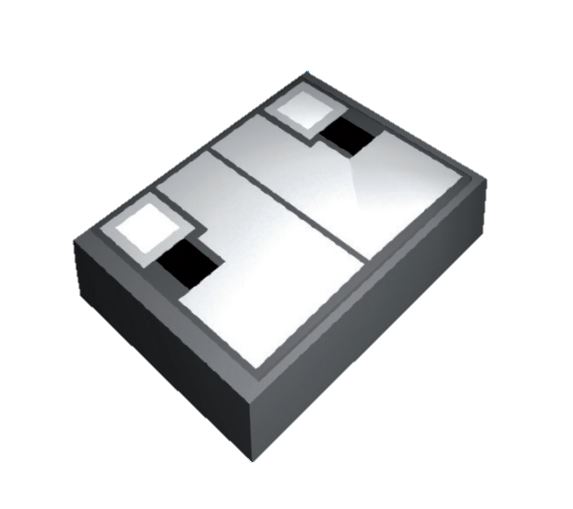

WBC-RC
Series | WBC-RC |
---|---|
Application | High reliability |
Mounting | SMD - wire-bond |
Package | Bare silicon die |
Technology | TaN film |
Approval | None |
Example MPN | WBD-DSOT23V-470K470M |
Termination Options | Pb-free |
Power | 0.125W |
---|---|
Rated Ambient Temperature | 70°C |
De-rate to 0W Ambient Temperature | 125°C |
Max Ambient Temperature | 125°C |
LEV | - |
Resistance min | 33Ω |
Resistance max | 100Ω |
Critical Resistance (where applying LEV dissipates Pr) | - |
Tolerance | 10% |
TCR | 150ppm/°C |
Isolation Voltage of Insulation | - |
RoHS Compliant (if Pb-free) | Yes (see below) |
---|---|
RoHS Exemption | None |
China RoHS (if Pb-free) | Compliant |
REACH Status (if Pb-free) | Reviewed to 235 SVHCs (see below) |
CMRT Conflict Mineral Status | Rev 6.22 Next update May 2023 (see below) |
EMRT Extended Mineral Status | CRT Rev 2.2 (see below) |
Termination Finish (if Pb-free) | Al |
Termination Finish (if Pb-bearing) | Not available |
How to Specify Pb-Free | All part numbers are Pb-free |
ECCN | EAR99 |
Packing | Tray |
---|---|
Quantity | - |
Nett Weight Each | - |
Reflow Process | Not applicable |
MSL | Not applicable |
Wave Process | Not applicable |
Shelf-life | None defined |
Launch Date | Pre-2000 |
---|---|
Lifecycle | Obsolete |
EOL Date / YTEOL Estimate | EOL in Jul 2020 |
Latest PCN Date | 15 Jul 20 |
Alternative Part Number | - |
Datasheet | WBC RC | |
Application Note | TN001 Advice on Storage Conditions for Fixed Resistors | |
Application Note | TN002 Instant Access to RoHS REACH Conflict Mineral and other Compliance Data Online | |
Application Note | TN003 Methods for Coding Resistor Values in Part Numbers | |
Application Note | TN005 EIA Standard Values for Resistors | |
Application Note | TN007 Instant Access to Life Cycle and Obsolete Product Data Online | |
Compliance | Dallas ISO 9001 | |
Compliance | RoHS WBD | |
Compliance | REACH Statement Dallas | |
Compliance | CMRT Conflict Mineral Dallas | |
Compliance | EMRT Extended Mineral Dallas | |
Compliance | Proposition 65 Declaration Dallas | |
Compliance | TSCA Statement Dallas | |
Product Change Notification | PCNs for WBA WBC |
