SL20T

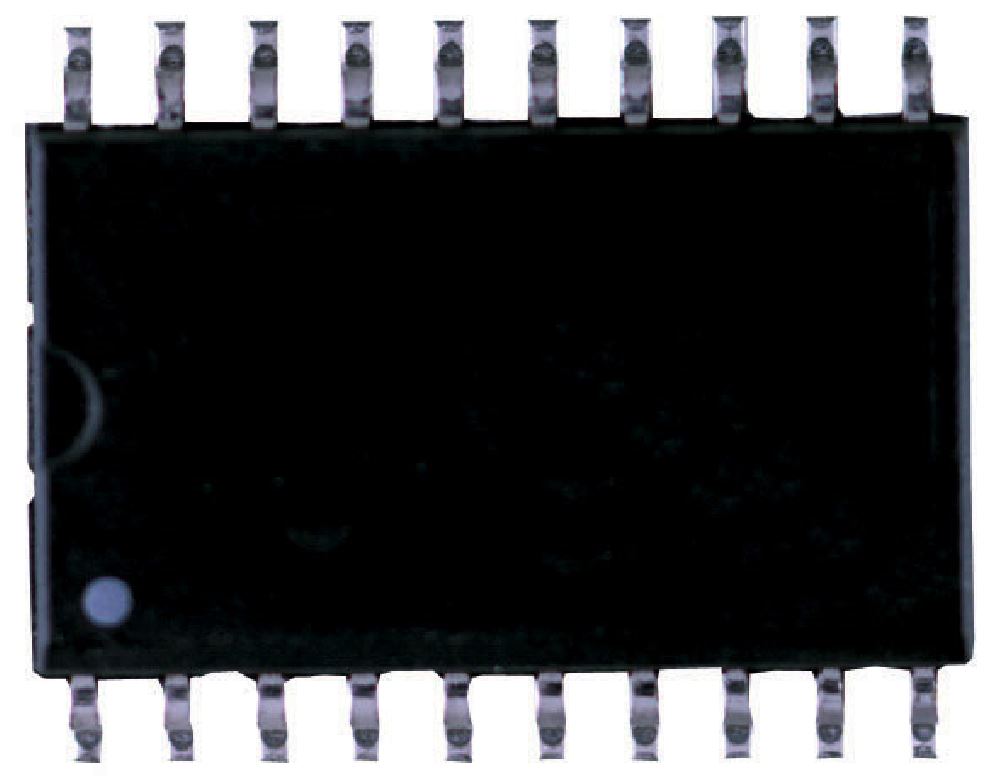

OBSOLETE TaNCap T-filter network, 20 pin SOIC-W

Brand:

IRC

Series:

T-Filter

Lifecycle:

Obsolete

Specifications

Series T-Filter
Application Network / array
Mounting SMD - solder
Package Network plastic
Technology TaN film
Approval -
Example MPN GUS-SL20TLF-330-K-470-M
Termination Options
  • Pb-free
  • Pb-bearing
Product Brand IRC
Power 0.1W
Rated Ambient Temperature 70°C
De-rate to 0W Ambient Temperature 125°C
Max Ambient Temperature 125°C
LEV -
Resistance min 10Ω
Resistance max 100Ω
Critical Resistance (where applying LEV dissipates Pr) -
Tolerance 10%
TCR 100ppm/°C
Isolation Voltage of Insulation -
RoHS Compliant (if Pb-free) Yes (see below)
RoHS Exemption None
China RoHS (if Pb-free) Compliant
REACH Status (if Pb-free) Reviewed to 223 SVHCs (see below)
CMRT Conflict Mineral Status Rev 6.1 Next update May 2022 (see below)
EMRT Extended Mineral Status Rev 2.2 Next update May 2022 (see below)
Termination Finish (if Pb-free) e3 - Sn matt plated
Termination Finish (if Pb-bearing) 85/15
How to Specify Pb-Free Part number has LF after Type
ECCN EAR99
Packing Tube
Quantity 56
Nett Weight Each -
Reflow Process J-STD-020E
MSL 2
Wave Process Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time
Shelf-life None defined, but solderability test prior to use is recommended after two years from date of manufacture
Lifecycle Obsolete
EOL Date / YTEOL Estimate EOL in Dec 2020
Latest PCN Date 27 Aug 20
Alternative Product No alternative
