WBA-T0303G

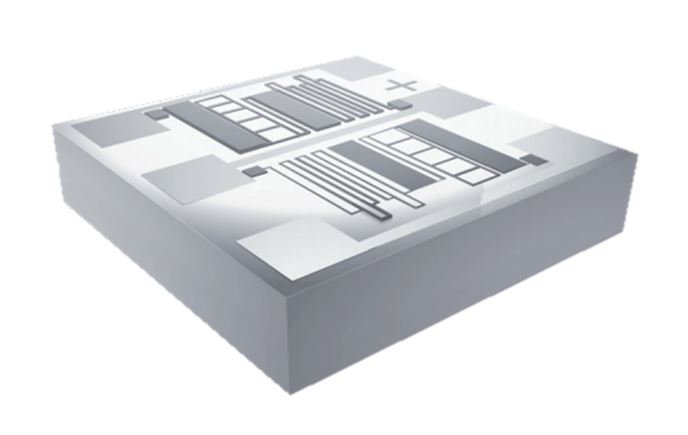

OBSOLETE Wire bondable ceramic chip tapped resistor

Brand:

IRC

Series:

WBA

Lifecycle:

Obsolete

Specifications

Series WBA
Application Precision
Mounting SMD - wire-bond
Package Chip (other size)
Technology TaN film
Approval -
Example MPN WBA-T0303GC-01-1002-FB
Termination Options Pb-free
Product Brand IRC
Power 0.125W
Rated Ambient Temperature 70°C
De-rate to 0W Ambient Temperature 150°C
Max Ambient Temperature 150°C
LEV 100V
Resistance min 10Ω
Resistance max 20kΩ
Critical Resistance (where applying LEV dissipates Pr) -
Tolerance 0.05%
TCR 2ppm/°C
Isolation Voltage of Insulation -
RoHS Compliant (if Pb-free) Yes (see below)
RoHS Exemption None
China RoHS (if Pb-free) Compliant
REACH Status (if Pb-free) Reviewed to 223 SVHCs (see below)
CMRT Conflict Mineral Status Rev 6.1 Next update May 2022 (see below)
EMRT Extended Mineral Status Rev 2.2 Next update May 2022 (see below)
Termination Finish (if Pb-free) e4 - Au
Termination Finish (if Pb-bearing) Not available
How to Specify Pb-Free All part numbers are Pb-free
ECCN EAR99
Packing Tray
Quantity -
Nett Weight Each -
Reflow Process Not applicable
MSL Not applicable
Wave Process Not applicable
Shelf-life None defined
Lifecycle Obsolete
EOL Date / YTEOL Estimate EOL in Jul 2020
Latest PCN Date 15 Jul 20
Alternative Product No alternative
