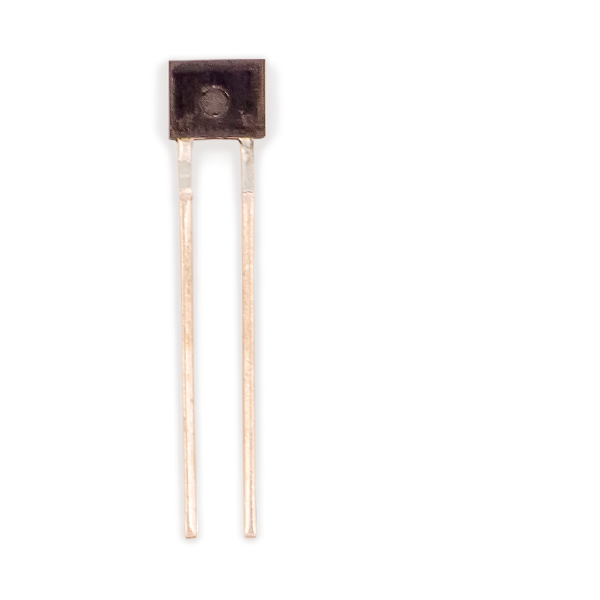

OP508FA
Phototransistor
Lifecycle:
Active
Brand:
Optek Technology
Flat lensed for wide acceptance angle (OP508FA)
Easily stackable on 0.100" (2.54 mm) hole centers
Inexpensive plastic package
Mechanically and spectrally matched to OP168F and OP268F series of infrared emitting diodes
Specifications
| Applications |
|
|---|---|
| Packaging | Endlooker |
| Lead Spacing | .100" |
| Component Type | Phototransistor |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | Phototransistor |
| Number of Elements | 1 |
| Material | Silicon |
| Color | - |
| Lead Length Min | 0.5" |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Wavelength | 890nm |
|---|---|
| Beam Angle | - |
| Viewing Angle | 120° |
| Output Power (mW/cm2) Min/Max | - |
| Operating Temperature | -40°C ~ 100°C |
| Data Rate Max | - |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | NPN Silicon Phototransistor |
| VCE Max | 30V |
| VCC Range | - |
| IF Typ/Max | - |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | 2.7mA |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
