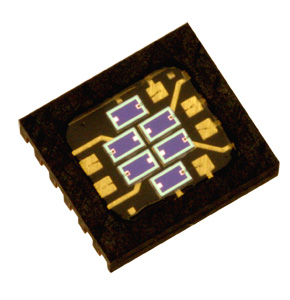

OPR2101
6 Element Photodiode Array, Small
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Wide receiving angle
Four sensitivity ranges
Side-looking package
Ideal for space-limited applications
Ideal for PCBoard mounting
Choice of clear, opaque or blue-tinted package
Specifications
| Applications |
|
|---|---|
| Packaging | Surface Mount Chip Carrier |
| Lead Spacing | - |
| Component Type | Photodiode Array |
| High Reliability | False |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | Photodiode |
| Number of Elements | 6 |
| Material | - |
| Color | - |
| Lead Length Min | - |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | 0.45mV |
| RoHs Compliance | Y |
| Wavelength | - |
|---|---|
| Beam Angle | - |
| Viewing Angle | - |
| Output Power (mW/cm2) Min/Max | - |
| Operating Temperature | -55°C ~ 125°C |
| Data Rate Max | - |
| Rise Time Typ | - |
| Reverse Voltage | 50T |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Output Type | - |
| VCE Max | 50V(BR)R |
| VCC Range | - |
| IF Typ/Max | - |
| Forward-Current Transfer Ratio Min | - |
| Forward-Current Transfer Ratio Max | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| ICCL/ICCH | - |
