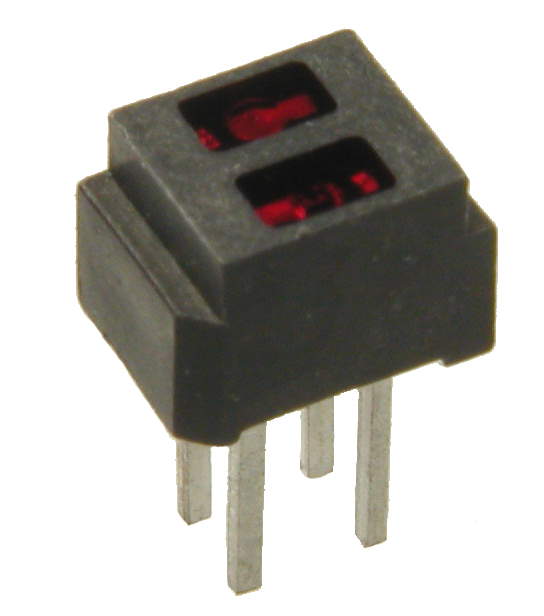

OPB608R
Reflective Sensor, Non-Focused
Lifecycle:
Active (Mature)
Brand:
Optek Technology
Phototransistor output
Unfocused for sensing diffuse surface
Low cost plastic housing
Enhanced signal to noise ratio
Reduced ambient light sensitivity
Specifications
| Applications |
|
|---|---|
| Package Termination | Through Hole |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | - |
| Material | - |
| Color | - |
| Lead Length Min | 0.18" |
| Lead Length Max | 0.18" |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Output Type | Rbe Phototransistor |
|---|---|
| Test Distance | 0.050" (1.27mm) |
| Operating Temperature | -40°C ~ 85°C |
| Focused / Non-Focused | Non-Focused |
| Endlooker / Sidelooker | Endlooker |
| Wavelength | 660nm |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Hysteresis Min (Gauss) | - |
| Hysteresis Max (Gauss) | - |
| Hysteresis Typ (Gauss) | - |
| VCE Max | 30V |
| VCC Range | - |
| IF Typ/Max | 7 / 12 or 20 / 50mA |
| Isolation Voltage Min | - |
| Light Current IC(ON) Min | 0.5mA |
| Light Current IC(ON) Max | - |
| Input/Output Power | - |
| ICCL/ICCH | - |
| Supply Voltage | 3V - 24V |
