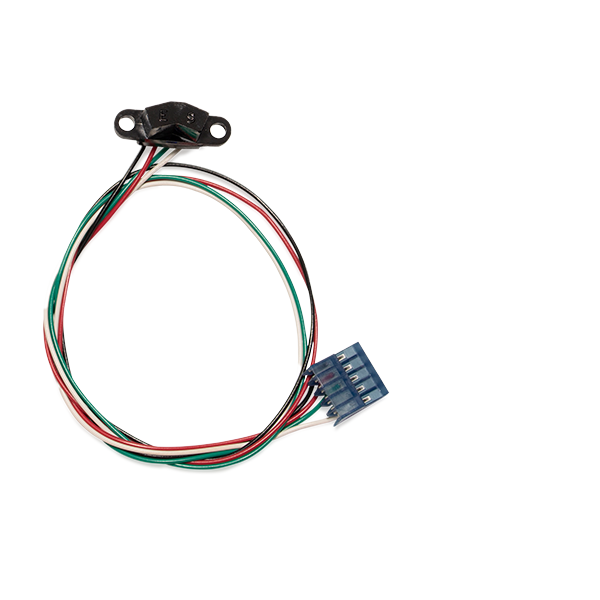

OPB755TZ
Reflective Sensor, Focused
Lifecycle:
Active (Mature)
Brand:
Optek Technology
High contrast ratio (1,000 :1 minimum)
Low cost plastic housing
PCBoard mount (OPB750N, OPB750T)
12” (305mm) 26 AWG wires (OPB755TZ)
Available with no-mounting tabs “N” package
Available with two mounting tabs “T” package
Specifications
| Applications |
|
|---|---|
| Package Termination | 12" / 26 AWG Wire |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | No |
| Photo Detector Type | - |
| Material | - |
| Color | - |
| Lead Length Min | - |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Output Type | Rbe Phototransistor |
|---|---|
| Test Distance | 0.08" / 0.15" / 0.22" |
| Operating Temperature | -40°C ~ 80°C |
| Focused / Non-Focused | Focused |
| Endlooker / Sidelooker | Sidelooker |
| Wavelength | 890nm |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Hysteresis Min (Gauss) | - |
| Hysteresis Max (Gauss) | - |
| Hysteresis Typ (Gauss) | - |
| VCE Max | 24V |
| VCC Range | - |
| IF Typ/Max | - |
| Isolation Voltage Min | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| Input/Output Power | - |
| ICCL/ICCH | - |
| Supply Voltage | 3V - 22V |
