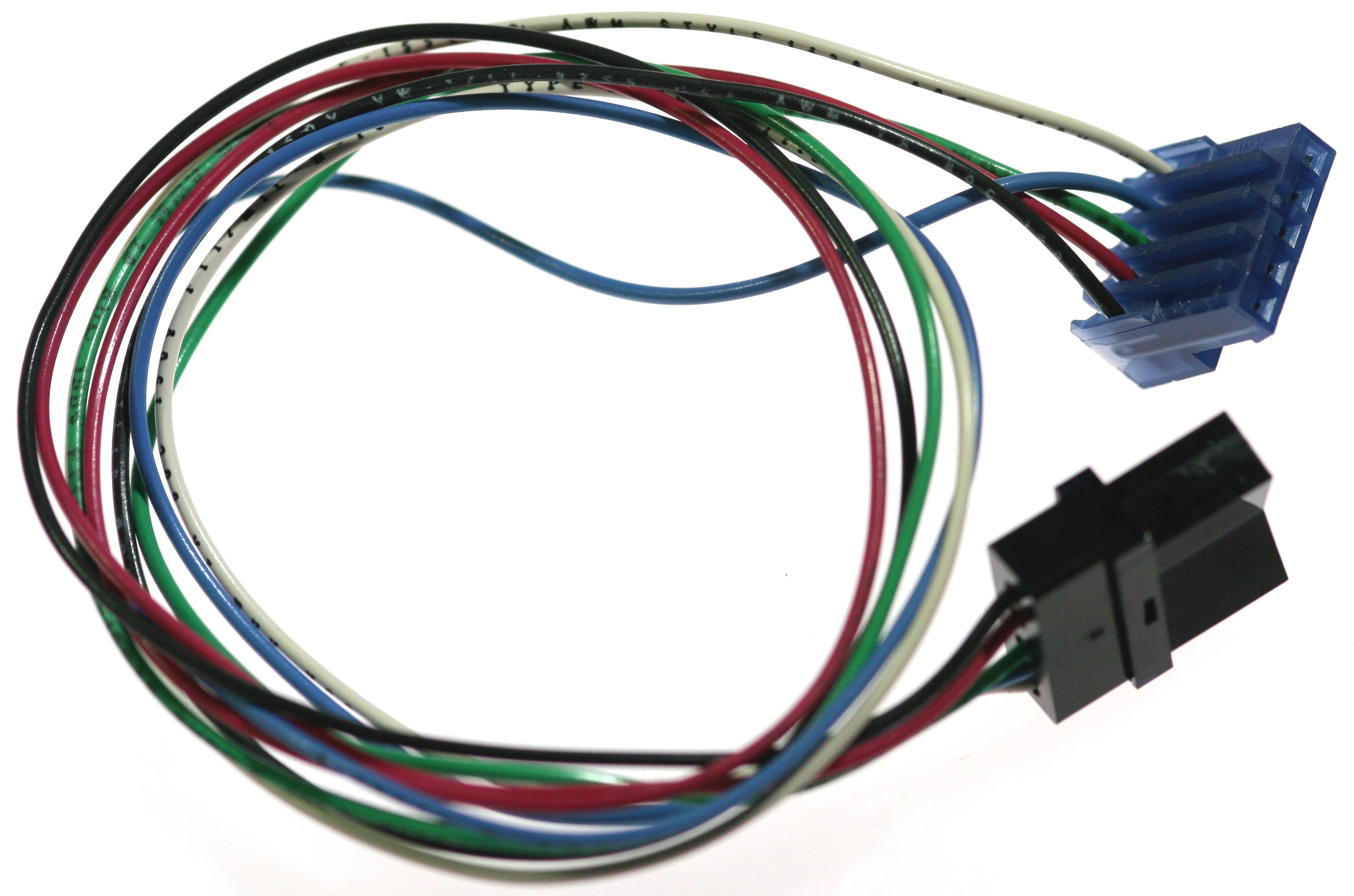

OPB773TZ
Reflective Sensor, Focused
Lifecycle:
Active
Brand:
Optek Technology
Choice of mounting configurations
Choice of four output configurations
.040" (10.160mm) PCBoard mount (N and T series)
12" (304.800mm) AWG 26 wires (NZ and TZ series)
Specifications
| Applications |
|
|---|---|
| Package Termination | 12" / 26 AWG Wire |
| High Reliability | No |
| Screening Level | - |
| Hall Effect | No |
| Photologic | Yes |
| Photo Detector Type | - |
| Material | - |
| Color | - |
| Lead Length Min | 12" |
| Lead Length Max | - |
| Receiver Type | - |
| Responsivity Min/Max/Typ | - |
| RoHs Compliance | Y |
| Output Type | Photologic, IOC |
|---|---|
| Test Distance | 0.08" / 0.22" |
| Operating Temperature | -40°C ~ 85°C |
| Focused / Non-Focused | Focused |
| Endlooker / Sidelooker | Sidelooker |
| Wavelength | 890nm |
| Rise Time Typ | - |
| Reverse Voltage | - |
| Peak Response Wavelength | - |
| Spectral Response Wavelength | - |
| Hysteresis Min (Gauss) | - |
| Hysteresis Max (Gauss) | - |
| Hysteresis Typ (Gauss) | - |
| VCE Max | - |
| VCC Range | 4.75 / 5.25V |
| IF Typ/Max | - |
| Isolation Voltage Min | - |
| Light Current IC(ON) Min | - |
| Light Current IC(ON) Max | - |
| Input/Output Power | - |
| ICCL/ICCH | - |
| Supply Voltage | 4.75V ~ 5.25V |
