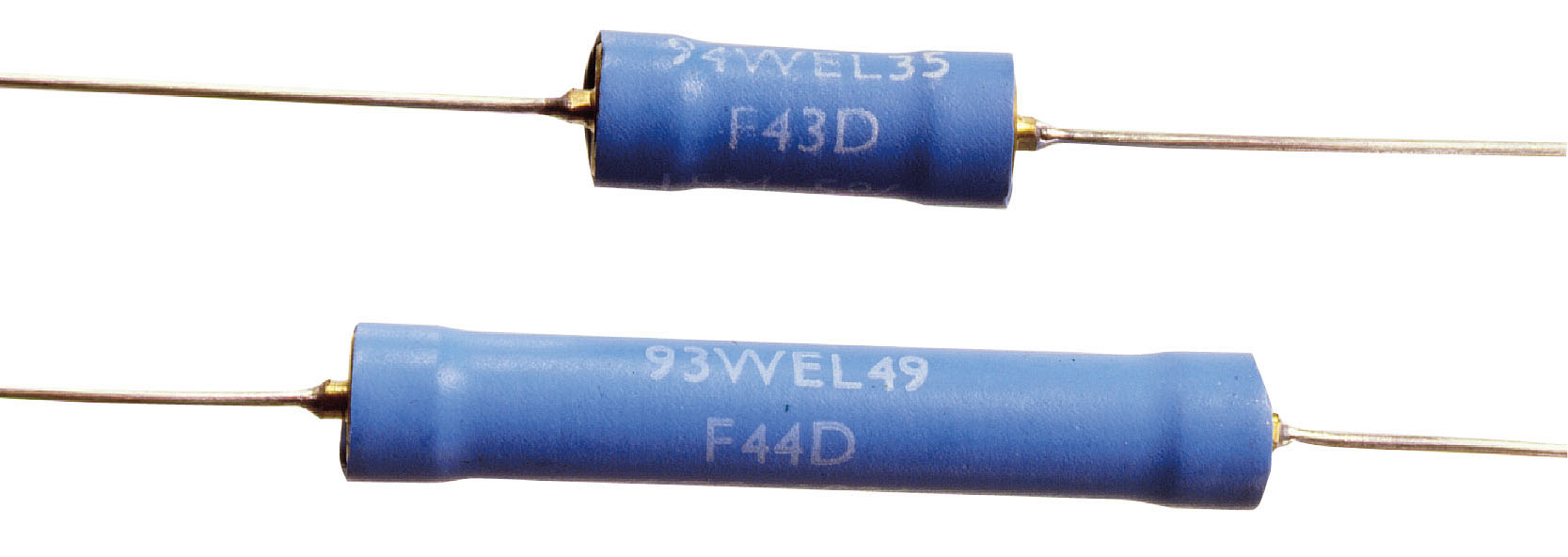

| Series | F |
|---|---|
| Application | High value / voltage |
| Mounting | Through hole |
| Package | Axial |
| Technology | Thick film |
| Approval | None |
| Example MPN | F43D-4G7JI |
| Termination Options |
|
| Power | 0.7W |
|---|---|
| Rated Ambient Temperature | 20°C |
| De-rate to 0W Ambient Temperature | 100°C |
| Max Ambient Temperature | 100°C |
| LEV | 4kV |
| Resistance min | 2MΩ |
| Resistance max | 100GΩ |
| Critical Resistance (where applying LEV dissipates Pr) | 22.9MΩ |
| Best Tolerance | 2% |
| Best TCR | 2000ppm/°C |
| Isolation Voltage of Insulation | Unspecified: ?V |
| RoHS Compliant (if Pb-free) | Yes (see below) |
|---|---|
| RoHS Exemption | 7(c)-I "Pb in glass" |
| China RoHS (if Pb-free) | Contains Pb. EFUP 50 Years |
| REACH Status (if Pb-free) | See REACH statement pdf (below) |
| CMRT Conflict Mineral Status | See CMRT Excel file (below) |
| EMRT Extended Mineral Status | No EMRT available |
| Termination Finish (if Pb-free) | e3 - Sn hot dipped |
| Termination Finish (if Pb-bearing) | 95/5 |
| How to Specify Pb-Free | Part number suffix is I and not PB |
| ECCN | EAR99 |
| Packing | Bulk / box |
|---|---|
| Quantity | 10 or 20 |
| Nett Weight Each | 4g |
| Reflow Process | Not applicable |
| MSL | Not applicable |
| Wave Process | Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time |
| Shelf-life | None defined, but solderability test prior to use is recommended after two years from date of manufacture |
| Launch Date | Pre-2000 |
|---|---|
| Lifecycle | Obsolete |
| EOL Date / YTEOL Estimate | EOL in Dec 2023 |
| Latest PCN Date | 12 Dec 23 |
| Alternative Part Number | T43 |
