1601

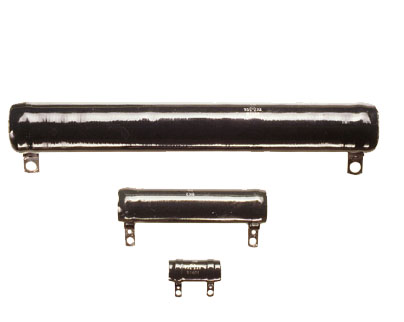

Tubular vitreous enamelled wirewound resistor

Brand:

Welwyn

Series:

1600-1900

Lifecycle:

Mature

Specifications

Series 1600-1900
Application High power
Mounting Non-PCB
Package Tubular
Technology Wirewound
Approval -
Example MPN C1601-10RJI
Termination Options Pb-free
Product Brand Welwyn
Power 14W
Rated Ambient Temperature 20°C
De-rate to 0W Ambient Temperature 375°C
Max Ambient Temperature 375°C
LEV 250V
Resistance min
Resistance max 15kΩ
Critical Resistance (where applying LEV dissipates Pr) 4.46kΩ
Tolerance 1%
TCR 75ppm/°C
Isolation Voltage of Insulation See datasheet: ? V
RoHS Compliant (if Pb-free) Yes (see below)
RoHS Exemption None
China RoHS (if Pb-free) Compliant
REACH Status (if Pb-free) Reviewed to 224 SVHCs (see below)
CMRT Conflict Mineral Status Rev 6.1 Next update May 2022 (see below)
EMRT Extended Mineral Status First issue due Nov 2021
Termination Finish (if Pb-free) e1 - SnAgCu
Termination Finish (if Pb-bearing) Not available
How to Specify Pb-Free All part numbers are Pb-free
ECCN EAR99
Packing Bulk / box
Quantity 1
Nett Weight Each -
Reflow Process Not applicable
MSL Not applicable
Wave Process Not applicable
Shelf-life None defined, but solderability test prior to use is recommended after two years from date of manufacture
Lifecycle Mature
EOL Date / YTEOL Estimate 5 years or more from May 2022
Latest PCN Date No PCNs
Alternative Product -
