CDR06

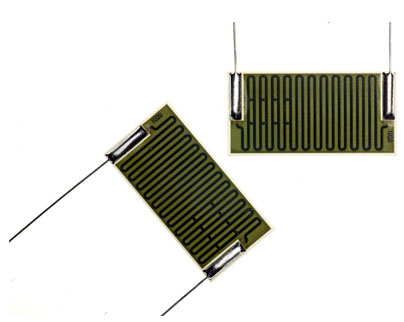

Capacitor discharge resistor

Brand:

Welwyn

Series:

CDR

Lifecycle:

Growth

Specifications

Series CDR
Application High value / voltage
Mounting Non-PCB
Package Radial
Technology Thick film
Approval -
Example MPN CDR06-680KKB01
Termination Options Pb-free
Product Brand Welwyn
Power 10W
Rated Ambient Temperature 70°C
De-rate to 0W Ambient Temperature 155°C
Max Ambient Temperature 155°C
LEV -
Resistance min 100kΩ
Resistance max 10MΩ
Critical Resistance (where applying LEV dissipates Pr) N/A: -Ω
Tolerance 10%
TCR 100ppm/°C
Isolation Voltage of Insulation Unspecified: ?V
RoHS Compliant (if Pb-free) Yes (see below)
RoHS Exemption 7(c)-I "Pb in glass"
China RoHS (if Pb-free) Contains Pb. EFUP 50 Years
REACH Status (if Pb-free) Reviewed to 224 SVHCs (see below)
CMRT Conflict Mineral Status Rev 6.1 Next update May 2022 (see below)
EMRT Extended Mineral Status First issue due Nov 2021
Termination Finish (if Pb-free) e3 - Sn matt plated
Termination Finish (if Pb-bearing) Not available
How to Specify Pb-Free All part numbers are Pb-free
ECCN EAR99
Packing Bulk / box
Quantity 100
Nett Weight Each 8.2g
Reflow Process Not applicable
MSL Not applicable
Wave Process Not applicable
Shelf-life None defined, but solderability test prior to use is recommended after two years from date of manufacture
Lifecycle Growth
EOL Date / YTEOL Estimate 5 years or more from May 2022
Latest PCN Date No PCNs
Alternative Product -
