EBW8518

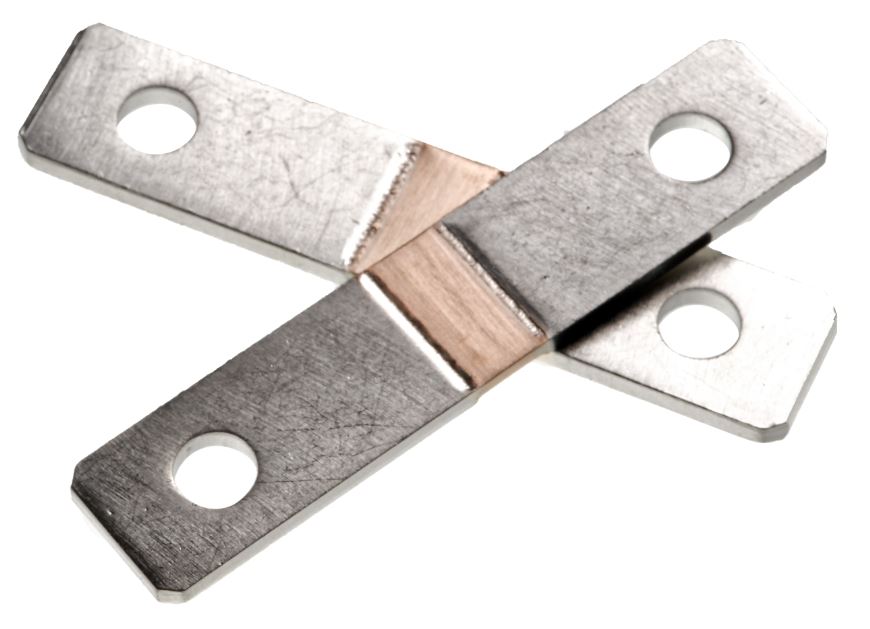

E-beam welded shunt 8518

Brand:

Welwyn

Series:

EBW8518

Lifecycle:

Growth

Specifications

Series EBW8518
Application Current sense
Mounting Non-PCB
Package Busbar
Technology Metal element
Approval AEC-Q200
Example MPN EBW8518PNT-L050JB
Termination Options Non-solder
Power 36W
Rated Ambient Temperature 70°C
De-rate to 0W Ambient Temperature 170°C
Max Ambient Temperature 170°C
LEV -
Resistance min .05mΩ
Resistance max .25mΩ
Critical Resistance (where applying LEV dissipates Pr) N/A: -Ω
Tolerance 1%
TCR 100ppm/°C
Isolation Voltage of Insulation Uninsulated: 0V
RoHS Compliant (if Pb-free) Yes (see below)
RoHS Exemption None
China RoHS (if Pb-free) Compliant
REACH Status (if Pb-free) Reviewed to 224 SVHCs (see below)
CMRT Conflict Mineral Status Rev 6.1 Next update May 2022 (see below)
EMRT Extended Mineral Status First issue due Nov 2021
Termination Finish (if Pb-free) Non-solder
Termination Finish (if Pb-bearing) Not available
How to Specify Pb-Free All part numbers are Pb-free
ECCN EAR99
Packing Bulk / box
Quantity 100
Nett Weight Each 40g
Reflow Process Not applicable
MSL Not applicable
Wave Process Not applicable
Shelf-life None defined
Launch Date Apr 2019
Lifecycle Growth
EOL Date / YTEOL Estimate 5 years or more from May 2022
Latest PCN Date No PCNs
Alternative Product -
