GBCN164

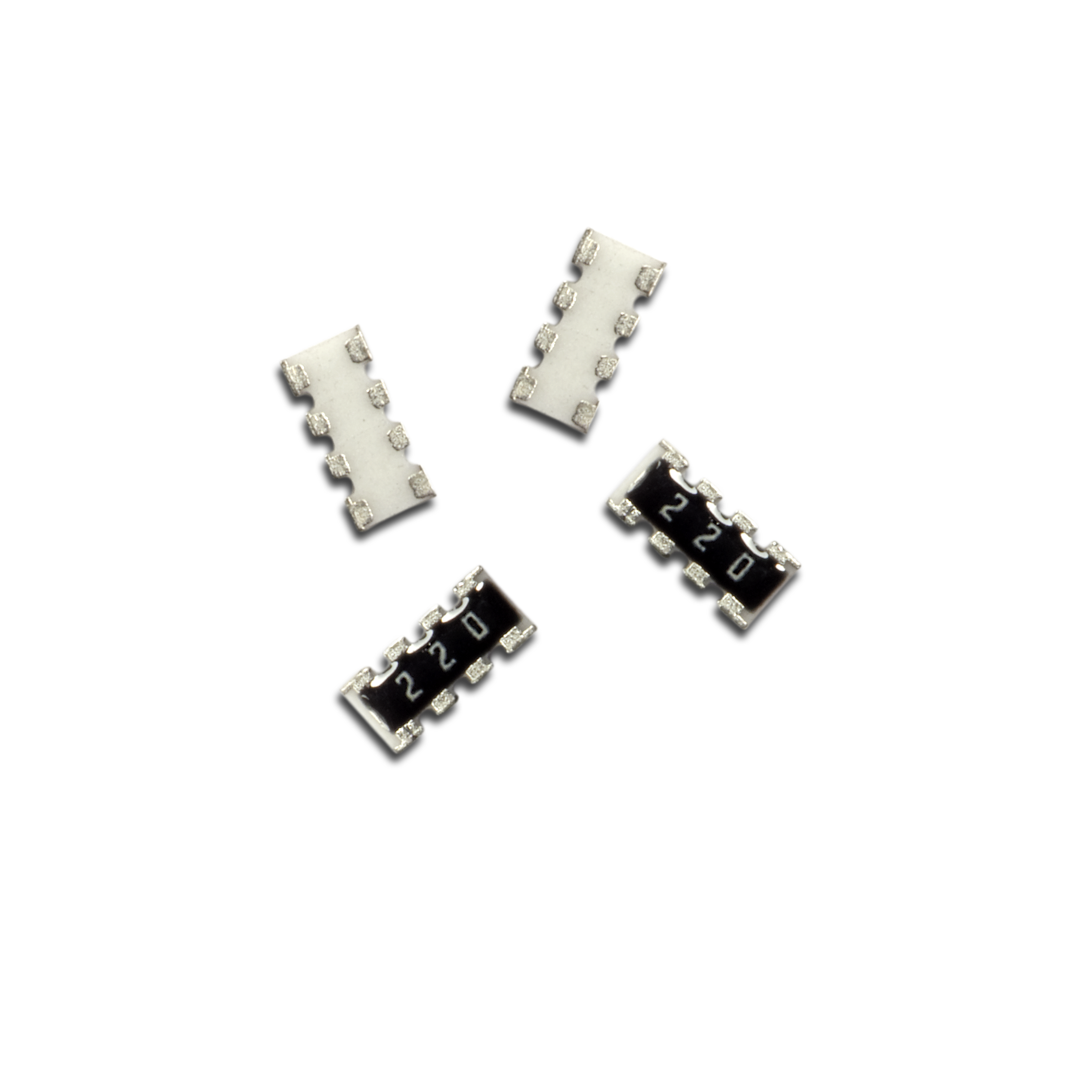

Green chip resistor array 1206, 4 element, isolated (exemption-free RoHS)

Brand:

Welwyn

Series:

GBCN

Lifecycle:

Growth

Specifications

Series GBCN
Application Network / array
Mounting SMD - solder
Package Chip array
Technology Thick film
Approval AEC-Q200
Example MPN GBCN164AB472J7
Termination Options Pb-free
Power 0.063W
Rated Ambient Temperature 70°C
De-rate to 0W Ambient Temperature 155°C
Max Ambient Temperature 155°C
LEV 50V
Resistance min
Resistance max 1MΩ
Critical Resistance (where applying LEV dissipates Pr) 39.7kΩ
Tolerance 1%
TCR 200ppm/°C
Isolation Voltage of Insulation 300V
RoHS Compliant (if Pb-free) Yes (see below)
RoHS Exemption None
China RoHS (if Pb-free) Compliant
REACH Status (if Pb-free) Reviewed to 224 SVHCs (see below)
CMRT Conflict Mineral Status Rev 6.1 Next update May 2022 (see below)
EMRT Extended Mineral Status First issue due Nov 2021
Termination Finish (if Pb-free) e3 - Sn matt plated
Termination Finish (if Pb-bearing) Not available
How to Specify Pb-Free All part numbers are Pb-free
ECCN EAR99
Packing Paper tape & reel
Quantity 5000
Nett Weight Each 8.6mg
Reflow Process J-STD-020E
MSL 1
Wave Process Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time
Shelf-life None defined, but solderability test prior to use is recommended after two years from date of manufacture
Launch Date Oct 2019
Lifecycle Growth
EOL Date / YTEOL Estimate 5 years or more from May 2022
Latest PCN Date No PCNs
Alternative Product -
