HPDC1206

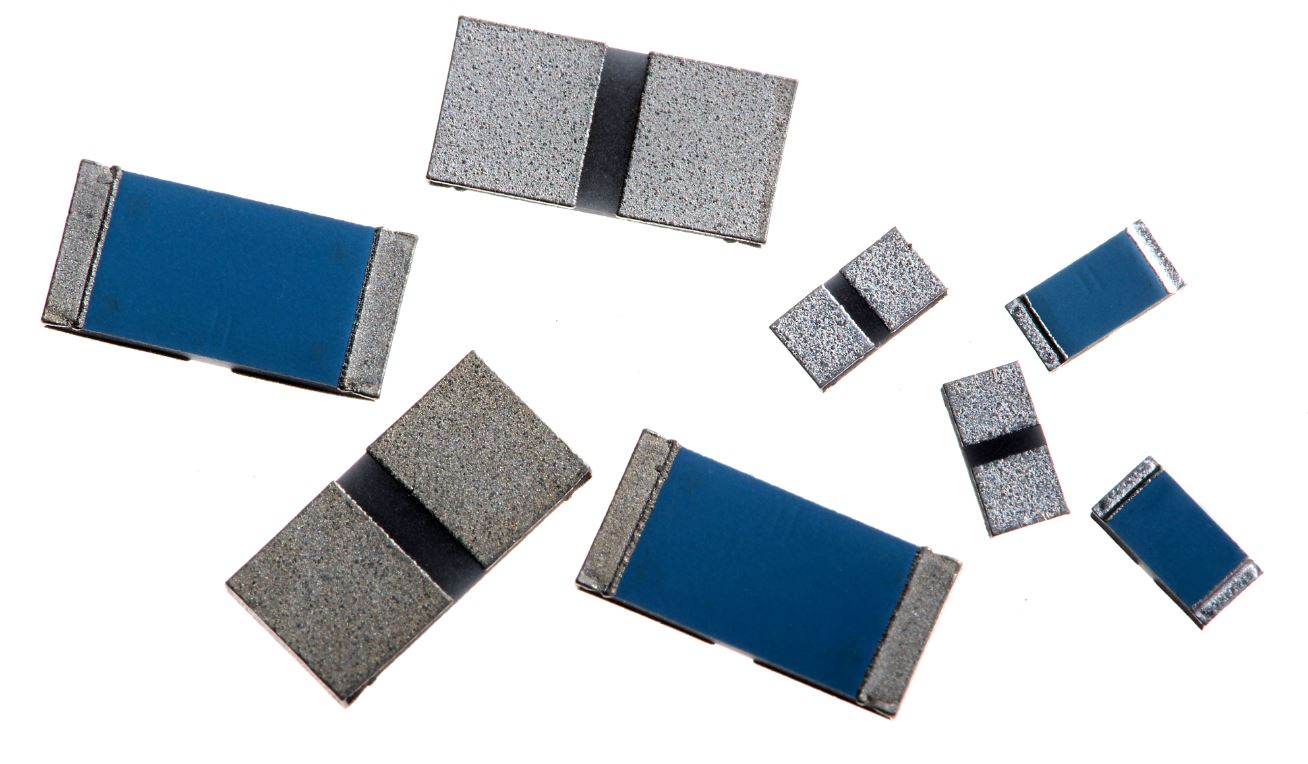

High power density chip resistor

Brand:

Welwyn

Series:

HPDC

Lifecycle:

Growth

Specifications

Series HPDC
Application High power
Mounting SMD - solder
Package Chip 1206
Technology Thick film
Approval -
Example MPN HPDC1206-2K0JT5
Termination Options Pb-free
Product Brand Welwyn
Power 2.4W
Rated Ambient Temperature 70°C
De-rate to 0W Ambient Temperature 155°C
Max Ambient Temperature 155°C
LEV 200V
Resistance min 10Ω
Resistance max 2kΩ
Critical Resistance (where applying LEV dissipates Pr) Out of Range: -Ω
Tolerance 1%
TCR 150ppm/°C
Isolation Voltage of Insulation Unspecified: ?V
RoHS Compliant (if Pb-free) Yes (see below)
RoHS Exemption 7(c)-I "Pb in glass"
China RoHS (if Pb-free) Contains Pb. EFUP 50 Years
REACH Status (if Pb-free) Reviewed to 224 SVHCs (see below)
CMRT Conflict Mineral Status Rev 6.1 Next update May 2022 (see below)
EMRT Extended Mineral Status First issue due Nov 2021
Termination Finish (if Pb-free) e3 - Sn matt plated
Termination Finish (if Pb-bearing) Not available
How to Specify Pb-Free All part numbers are Pb-free
ECCN EAR99
Packing Paper tape & reel
Quantity 5000
Nett Weight Each 7.1mg
Reflow Process J-STD-020E
MSL 1
Wave Process Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time
Shelf-life None defined, but solderability test prior to use is recommended after two years from date of manufacture
Lifecycle Growth
EOL Date / YTEOL Estimate 5 years or more from May 2022
Latest PCN Date No PCNs
Alternative Product -
